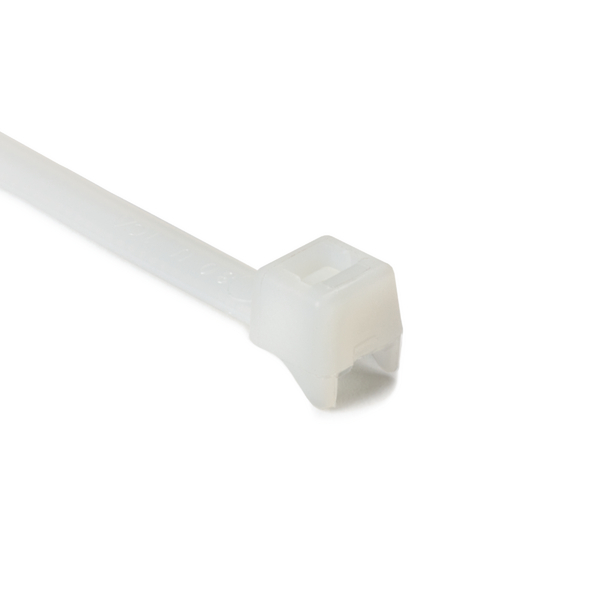

Cable Ties for hose and gaiter CTT60R

CTT-Series natural and black , Article number: 112-52104

Features

  • Curved design of head offers a good fit to the bundle
  • Inside serration for a positive hold onto bundles
  • Easy application either manually or with a processing tool

Certifications & Approvals

Application

CTT is designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many different industries including automotive, white goods manufacturing, medical, medical industry and construction.

CTT-Series natural and black is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK9P, MK20, MK21, EVO7, EVO7SP, EVO9, EVO9HT
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie for hose and gaiter 205x4.7 PA66 natural
GLOBAL PART DESCRIPTION CTT60R-PA66-NA
Identification Plate Position none
Pack Cont. 100
Package Quantity per Bag
Product Family CTT-Series natural and black
Product Group Cable Ties for hose and gaiter
Releasable Closure (Yes/No) No
Short Description 8", 60 lb., clamp tie, natural, 100/bag
Tie Closure plastic pawl
Type HT50R.NN3E
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 1.5mm
Length (L) 205.0mm
Min.Tensile Strength 265.0N
Thickness (T) 1.2mm
Width (W) 4.7mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications UL
UL Listed (US and Canada) No
UL OCD link ZODZ.E64139
ZODZ2.E64139
ZODZ7.E64139
ZODZ8.E64139
UL Recognized (US and Canada) Yes
UL-File Number E64139
EAN / GTIN 4031026312248
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00226
Packaging 1 - Weight (kg) 0.14kg
Packaging 1 - Width (m) 0.18m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 7.61kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 173.2kg
Packaging 4 - Width (m) 0.8m
Weight 0.0028lbs
Weight 0.14kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
