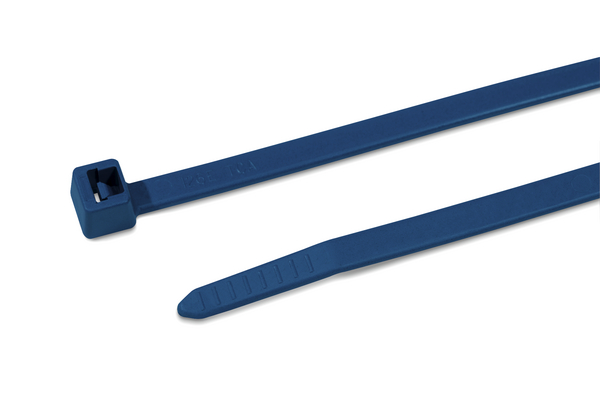

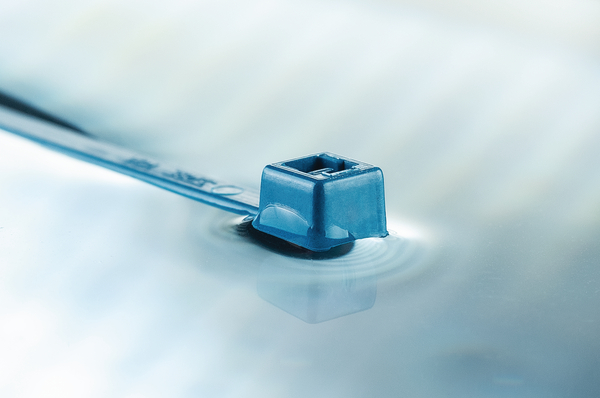

Cable tie inside serrated detectable, 390.0x4.6mm, Ø6.0-110.0mm, blue, 100pcs.
Art.-No. 111-01667 | MCTPP50L-PPMP+-BU Details

  • Manufactured from metal content Polypropylene
  • High chemical and temperature resistance
  • Blue colour for easy visual detection
  • Greatly reduces risk of contamination
  • Magnetic and X-Ray detectable (detection level depending on specific application and equipment)
  • MCTS ties have very good corrosion resistance
  • Can support quality assurance in the production of food stuffs, for example HACCP
Show more

Request your individual offer now

Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installation of cabling in and around the manufacturing process.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Blue (BU)
Fixation Method Cable Tie
Identification Plate Position none
Key product features detectable
Local order number MCTPP50L.PL3P
Material Polypropylene with metal particles (PPMP+)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION MCTPP50L-PPMP+-BU
Product Family MCT-Series, PPMP
Product Group Cable ties for food industry, detectable
Releasable Closure (Yes/No) No
Short Description Metal Content Tie 390x4.6 mm, PPMP, blue
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 110.0mm
Bundle ∅ 6.0-110.0mm
Bundle ∅ min. 6.0mm
Length (L) 390.0mm
Min.Tensile Strength 150N
Thickness (T) 1.4mm
Weight/Unit 0.00255kg
Width (W) 4.6mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +115 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660344732
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.533m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00324
Packaging 1 - Weight (kg) 0.255001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 10.80004kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 280.2kg
Packaging 4 - Width (m) 0.8m
EFO Norway block number 110201
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
