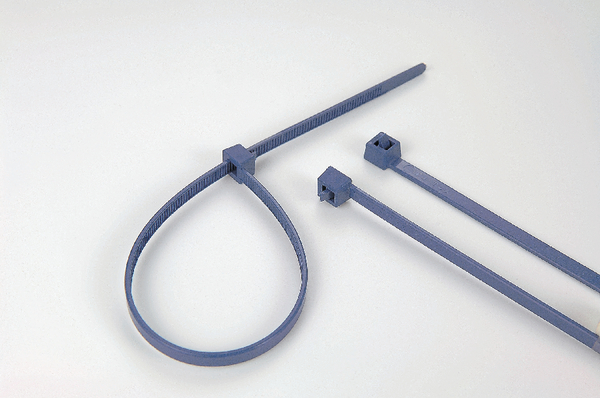

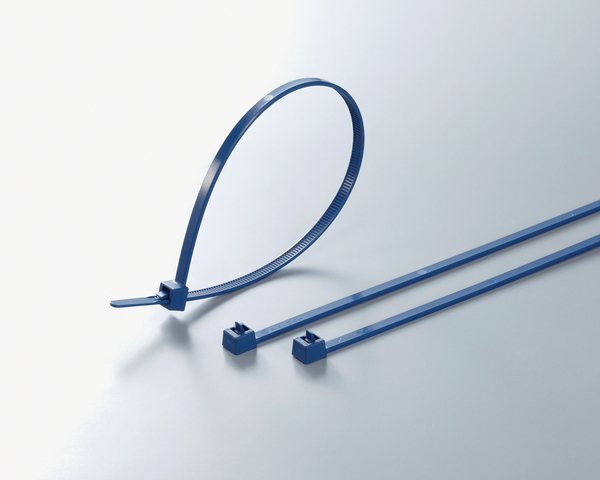

Cable tie inside serrated detectable, 250.0x4.6mm, Ø5.0-65.0mm, blue, 100pcs.
Art.-No. 111-00937 | MCTRELK2M-PA66MP-BU Details

  • Total metal dispersion throughout the tie
  • Can be reopened and reused
  • Supports quality processes around the production of food stuffs
  • Blue colour most common for easy visual detection
  • Greatly reduces risk of contamination
  • Magnetic detectable (detection level depending on specific application)
Show more

Request your individual offer now

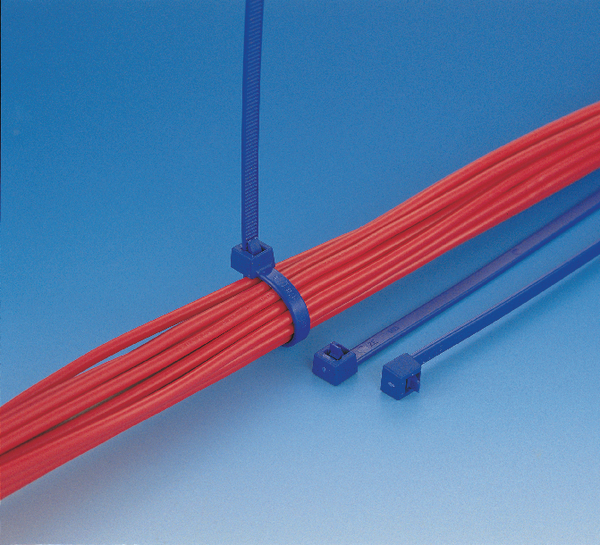

Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process. The MCTRELK ties do have a releasable function thus they can be reopened and reused.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Blue (BU)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features detectable
Local order number MCTRELK2M.NL3P
Material Polyamide 6.6, with metal particles (PA66MP)
PART DESCRIPTION MCTRELK2M-PA66MP-BU
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family MCT-Series releasable, PA66MP
Product Group Cable ties for food industry, detectable, reusable
Releasable Closure (Yes/No) Yes
Short Description Re-Usable Metal Content Tie 250x4.6 mm, PA66MP, blue
Tie Closure plastic pawl
Type MCTRELK2M

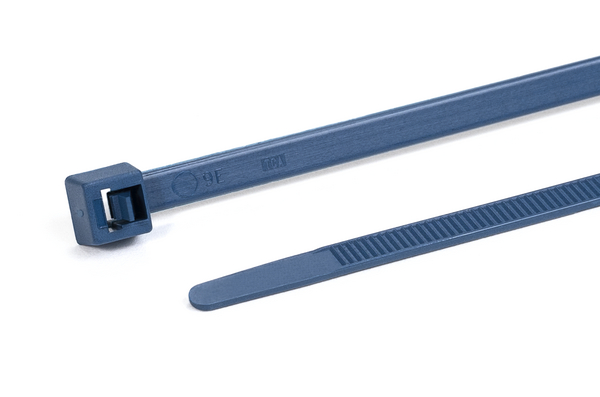

Variant Inside Serrated
Bundle Diameter max (metric) 65.0mm
Bundle ∅ 5.0-65.0mm
Bundle ∅ min. 5.0mm
Cable Tie Head Height (metric) 6.0mm
Cable Tie Head Length (metric) 8.3mm
Cable Tie Head Width (metric) 8.0mm
Length (L) 250.0mm
Min.Tensile Strength 225N
Thickness (T) 1.5mm
Weight/Unit 0.0022kg
Width (W) 4.6mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660332210
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00138
Packaging 1 - Weight (kg) 0.220001kg
Packaging 1 - Width (m) 0.16m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 9.60204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 213.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
