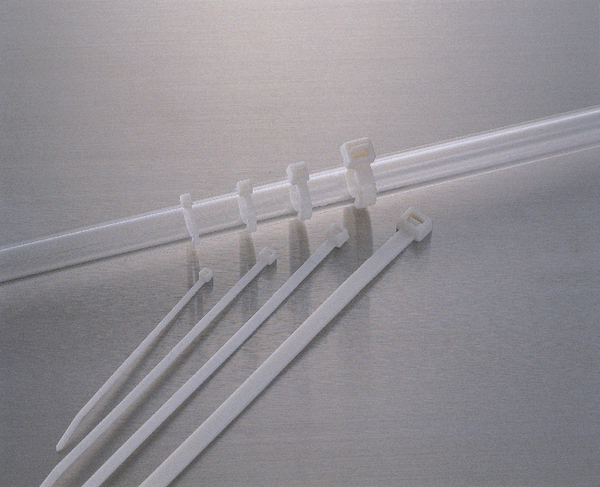

Cable tie inside serrated, 100x2.5mm, Ø1.5-22.0mm, white, 100pcs.
Art.-No. 111-91819 | T18R-PA66V0-WH Details

  • White cable tie for higher fire-protection
  • Conform to low smoke generation requirements (UL94 V0)
  • Low evolution of toxic gases and corrosive acids in event of a fire
  • PA66V0 cable ties are available in different sizes
  • High safety rating due to low fire hazard
Show more

Request your individual offer now

e-Learning
Application T-Series cable ties for bundling and securing cables, pipes and hoses. These cable ties can be used for almost any type of application especially where safety regulations are high and the reduction of smoke and dangerous gases is required. PA66V0 products are most critically used within public sector areas – particularly in the rail, construction and defence industry.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour White (WH)
Identification Plate Position none
Local order number T18R.VN3P
Material Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION T18R-PA66V0-WH
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family T-Series in PA66V0 white
Product Group Cable ties for higher fire-protection
Releasable Closure (Yes/No) No
Short Description Cable Tie 100x2.5 white
Tie Closure plastic pawl
Type T18R
Variant Inside Serrated
Bundle Diameter max (metric) 22.0mm
Bundle ∅ 1.5-22.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Length (metric) 4.8mm
Cable Tie Head Width (metric) 4.45mm
Height (H) 3.7mm
Length (L) 100mm
Min.Tensile Strength 80N
Strap Width max. (G) (imperial) 0.18"
Thickness (T) 1.0mm
Weight/Unit 0.00028kg
Width (W) 2.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 45545-2, IEC 60092 series
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660019418
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.152m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00046
Packaging 1 - Weight (kg) 0.030001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 25000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 8.30225kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 500000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 187.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
