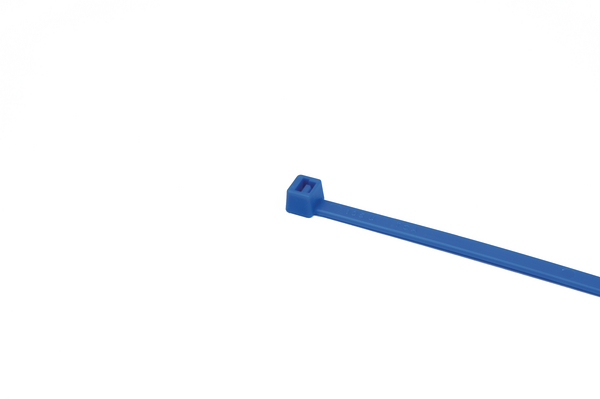

Cable tie inside serrated, 150x3.5mm, Ø1.5-35.0mm, blue, 100pcs.
Art.-No. 111-03008 | T30R-PA66-BU Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Colour Blue (BU)
Identification Plate Position none
Local order number T30R.NL3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION T30R-PA66-BU
Product Family T-Series in PA66 coloured
Product Group Cable Ties Polyamide 6.6 standard
Releasable Closure (Yes/No) No
Short Description Cable Tie 150x3.5 blue
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 35.0mm
Bundle ∅ 1.5-35.0mm
Bundle ∅ min. 1.5mm
Length (L) 150mm
Min.Tensile Strength 135N
Thickness (T) 1.2mm
Weight/Unit 0.0007kg
Width (W) 3.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Specifications IEC 60092 series
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660018763
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.191m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0007
Packaging 1 - Weight (kg) 0.080001kg
Packaging 1 - Width (m) 0.146m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 8.8021kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 197.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
