12/06/2024

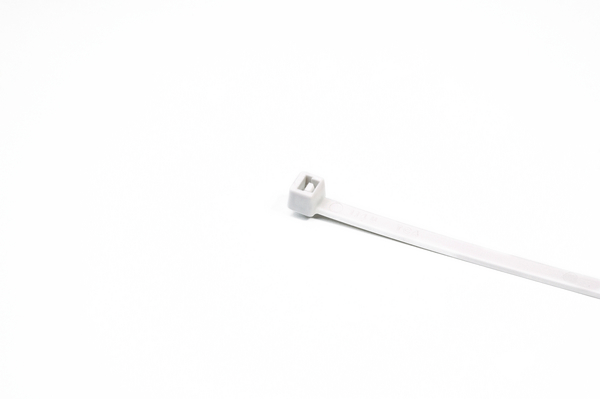

Cable tie inside serrated, 390x4.7mm, Ø3.0-110.0mm, white, 100pcs.
Art.-No. 111-05438 | T50L-PA66V0-WH Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

Request your individual offer now

e-Learning
Application These cable ties are used for routing, bundling and securing of cables, pipes and hoses.
Application Method Quick, simple fixing by hand or with HellermannTyton tensioning tools
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour White (WH)
Identification Plate Position none
Local order number T50L.VN3P
Material Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION T50L-PA66V0-WH
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T-Series in PA66V0
Product Group Cable Ties for higher fire-protection
Releasable Closure (Yes/No) No
Short Description Cable tie 390x4.6 mm white
Tie Closure plastic pawl
Type T50L
Variant Inside Serrated
Bundle Diameter max (metric) 110.0mm
Bundle ∅ 3.0-110.0mm
Bundle ∅ min. 3.0mm
Cable Tie Head Length (metric) 7.2mm
Cable Tie Head Width (metric) 8.1mm
Length (L) 390mm
Min.Tensile Strength 225N
Strap Width max. (G) (imperial) 0.32"
Thickness (T) 1.4mm
Weight/Unit 0.0027kg
Width (W) 4.7mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications ANSI/UL 62275, EN 45545-2
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660121982
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.508m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00309
Packaging 1 - Weight (kg) 0.270001kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 11.60204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 253.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
