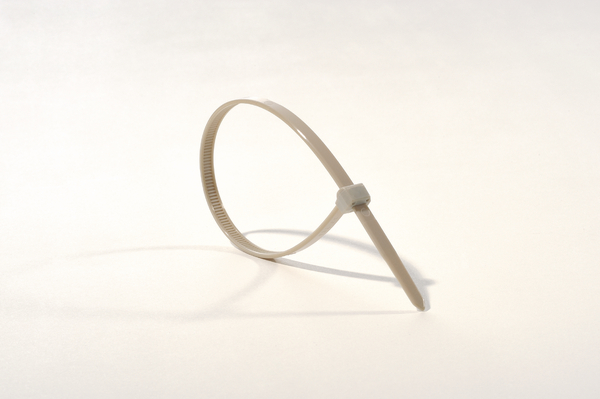

Cable tie inside serrated, 220.0x4.7mm, Ø8.0-56.0mm, beige, 100pcs.
Art.-No. 111-01235 | PT220-PEEK-BGE Details

  • For high temperature applications from -55 °C up to +240 °C

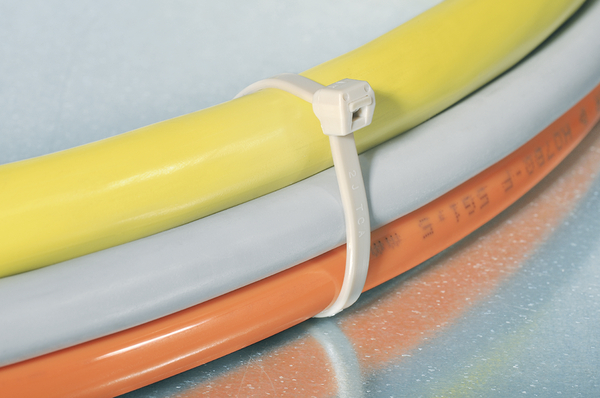

  • Close-fitting to the cable bundle due to the deepening head shape
  • Easy insertion combined with high tensile strength

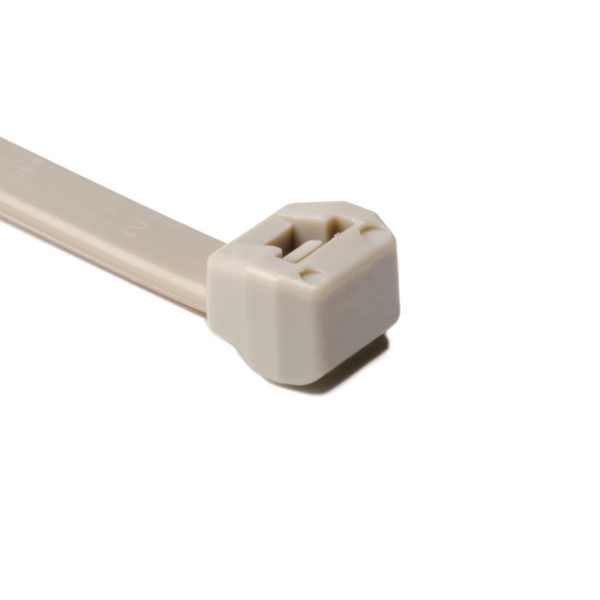

  • Takes up less space due to curved head
  • Conjuncts performance of a metal tie with the ease of use of a polyamide cable tie
  • Easy application either manually or with a processing tool
Show more

Request your individual offer now

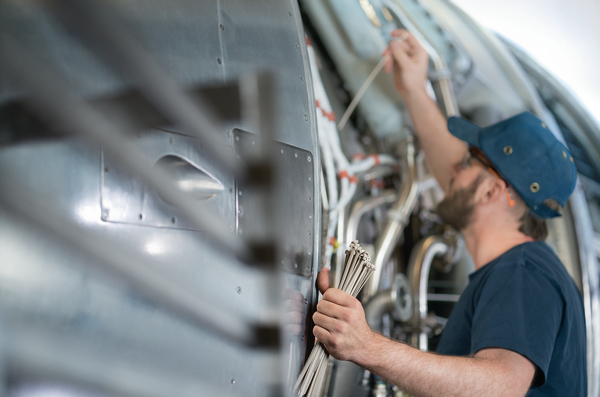

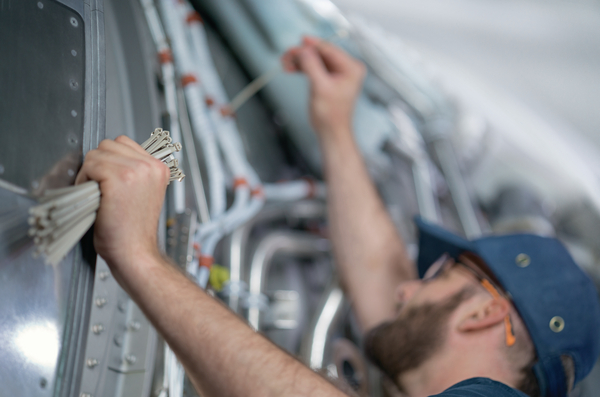

Application PEEK Ties have been designed for use in hazardous environments. Their suitablility for high temperature applications makes them ideal for use in the drilling industry, railway, offshore or automotive industry. The excellent chemical and radium ray resistance is predestined for applications in medical engineering, chemical industry and power stations. Within the aerospace industry, PEEK ties are suitable due to their good ratio weight to tensile strength. Because of this combination of different properties, PEEK ties can replace metal solutions.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Beige (BGE)
Description The plastic cable tie with the highest resistance to heat
Identification Plate Position none
Local order number PT220
Material Polyetheretherketone (PEEK)
PART DESCRIPTION PT220-PEEK-BGE
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family PEEK Ties, inside serrated
Product Group Cable Ties for high temperature application up to +240 °C
Releasable Closure (Yes/No) No
Short Description PEEK Cable Tie 220x4.7 mm, beige
Tie Closure plastic pawl
Type PT220

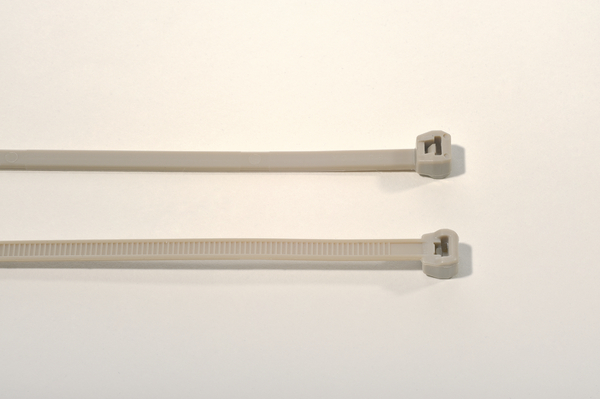

Variant Inside Serrated
Bundle Diameter max (metric) 56.0mm
Bundle ∅ 8.0-56.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (metric) 6mm
Cable Tie Head Length (metric) 7.2mm
Cable Tie Head Width (metric) 8.2mm
Length (L) 220.0mm
Min.Tensile Strength 380N
Strap Width max. (G) (imperial) 0.32"
Thickness (T) 1.3mm
Weight/Unit 0.00125kg
Width (W) 4.7mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -55 °C to +240 °C
ROHS compliant Yes
Specifications
Specifications EN 62275, EN 62275:2009, IEC 62275, UL 62275
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387960549
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00096
Packaging 1 - Weight (kg) 0.200001kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0296
Packaging 3 - Weight (kg) 10.24005kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 125000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 277.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
