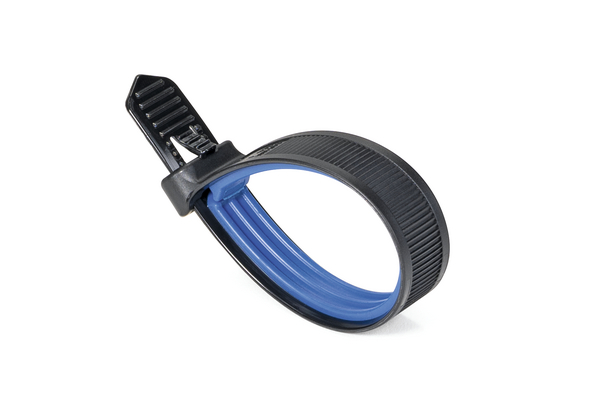

Cable tie outside serrated softgrip, 140.0x12.7mm, ⌀5.0-25.4mm, black/blue, 500pcs.
Art.-No. 111-50000
| SGT100S-PA66HS/TPE-BK/BU
|
Copied
- 2-component cable tie (PA66HS and TPE) assures high protection of sensitive harnesses and fluid system tubes
- Soft TPE inner layer inhibits lateral movements on the bundle, especially on smooth tubing
- Pre-locking feature holds the cable tie in place before it is tensioned
- Soft Grip cable tie can be removed with a screwdriver for maintenance
- EVO9 SG application tool with adjusted nose piece available
Request your individual offer now
Request quote
More products in this product group:
This product is part of:
SamplePack_Fluid_Routing_Management
SamplePackSOFTGRIP
| Application | Soft Grip cable ties are 2-component or “twin-shot” ties (that combine PA66HS with a soft TPE inner layer). It is designed for the flexible and easy bundling and fastening of smooth and sensitive bundles, such as pipes in vehicle fluid management applications. It has a pre-locking feature and can also be re-opened with a screwdriver. Soft Grip cable ties can be used in combination with specially developed mounts with standardised tie head retention and customisable footparts. |
| Colour | Black (BK), Blue (BU) |
| Fixation Method | Cable Tie |
| Identification Plate Position | none |
| Key product features | softgrip |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Thermoplastic Elastomer (TPE) |
| Min.Tensile Strength | 445N |
| PART DESCRIPTION | SGT100S-PA66HS/TPE-BK/BU |
| Package Content | 500pcs. |
| Package Content packed in | Pack |
| Product Family | Soft Grip-Series |
| Product Group | Cable ties for strong hold on smooth bundles |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable tie outside serrated softgrip, 140.0x12.7mm, ⌀5.0-25.4mm, black/blue, 500pcs. |
| Strap Thickness max. | 2.85mm |
| Tie Closure | plastic pawl |
| Type | SGT100S |
| UV-Stabilised | No |
| Variant | Outside Serrated |
| Weight/Unit | 0.002556kg |
Download
| CAS Number | 3896-11-5 |
| CE Certification | No |
| CSA Certified | No |
| Critical Substance |
Bumetrizole (UV-326) >0.1 |
| EC Number | 223-445-4 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Vibrations absorbing | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026650432 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0231075m³ |
| Packaging 1 - Weight (kg) | 1.307135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.66281kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 124.944kg |
| Packaging 4 - Width (m) | 0.8m |
