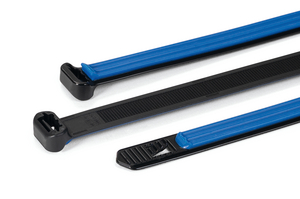

Cable tie outside serrated softgrip, 140.0x12.7mm, Ø5.0-25.4mm, black/blue, 500pcs.
Art.-No. 111-50001 | SGT100S-PA66HIRHSUV/TPE-BK/BU Details

  • 2-component cable tie (PA66HS and TPE) assures high protection of sensitive harnesses and fluid system tubes
  • Soft TPE inner layer inhibits lateral movements on the bundle, especially on smooth tubing
  • Pre-locking feature holds the cable tie in place before it is tensioned
  • Soft Grip cable tie can be removed with a screwdriver for maintenance
  • EVO9 SG application tool with adjusted nose piece available
Show more

Request your individual offer now

e-Learning
Application Soft Grip cable ties are 2-component or “twin-shot” ties (that combine PA66HS with a soft TPE inner layer). It is designed for the flexible and easy bundling and fastening of smooth and sensitive bundles, such as pipes in vehicle fluid management applications. It has a pre-locking feature and can also be re-opened with a screwdriver. Soft Grip cable ties can be used in combination with specially developed mounts with standardised tie head retention and customisable footparts.
Application Tool EVO9SG
Colour Black (BK), Blue (BU)
Identification Plate Position none
Key product features softgrip
Local order number SGT100S-PA66HIRHSUV/TPE-BK
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
PART DESCRIPTION SGT100S-PA66HIRHSUV/TPE-BK/BU
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family Soft Grip-Series
Product Group Cable ties for strong hold on smooth bundles
Releasable Closure (Yes/No) No
Strap Thickness max. 2.85mm
Tie Closure plastic pawl
Type SGT100S
Variant Outside Serrated

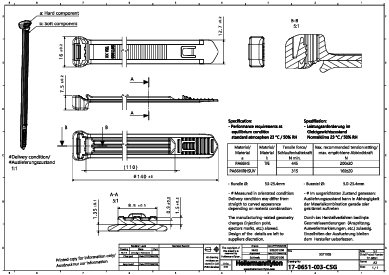

Bundle Diameter max (metric) 25.4mm
Bundle ∅ min. 5.0mm
Cable Tie Head Height (metric) 7.5mm
Cable Tie Head Width (metric) 16.0mm
Height (H) 7.5mm
Length (L) 140.0mm
Min.Tensile Strength 315N
Thickness (T) 2.85mm
Weight/Unit 0.00359kg
Width (W) 12.7mm
Width (W2) 16.0mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free No
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Reusable (Yes/No) No
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Vibrations absorbing No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026673103
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Weight (kg) 1.824135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Qty 3000
Packaging 3 - Weight (kg) 11.76481kg
Packaging 4 - Height (m) 1.248m
Packaging 4 - Qty 36000
Packaging 4 - Weight (kg) 162.168kg
UNSPSC Key 39121703
