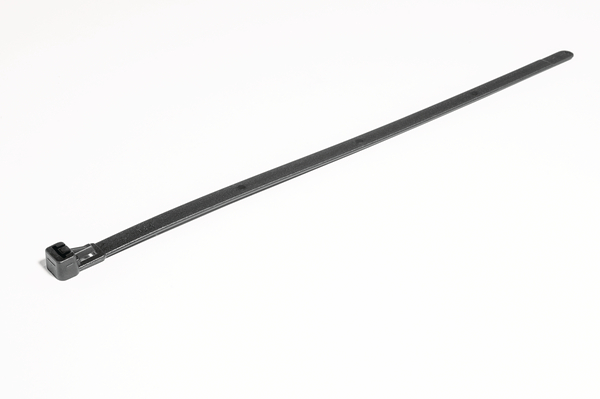

Releasable cable tie, 180x6.5mm, Ø12.0-46.0mm, 150N, black, 100pcs.
Art.-No. 115-00027 | REL180-PA66-BK Details

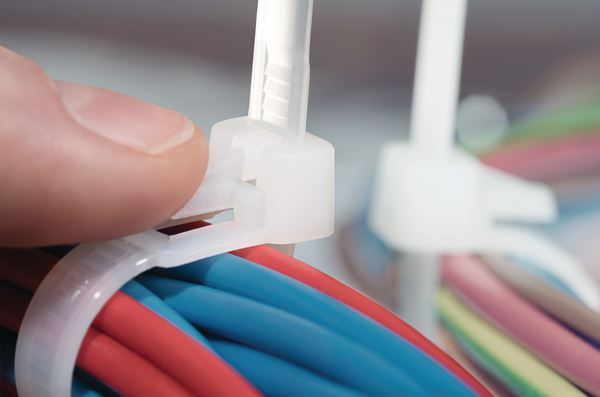

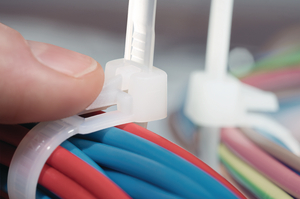

  • Releasable and reusable cable tie for medium-weight loads

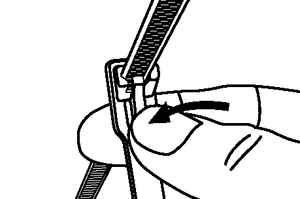

  • Extremely easy-to-operate release mechanism
  • Opens simply and quickly with only one hand
  • Also available in PA66W for outdoor applications
  • REL cable ties have their serration on the inside
Show more

Request your individual offer now

Application The REL-Series is ideally used in applications where changes are anticipated and a tie needs to be opened and closed repeatedly. The release mechanism of an REL cable tie allows simple and quick opening with only one hand. UV resistant cable ties manufactured from PA66W are recommended for outdoor applications.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Local order number REL180.NB3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION REL180-PA66-BK
Product Family REL-Series
Product Group Cable ties inside serrated with kickdown lever
Releasable Closure (Yes/No) Yes
Short Description Releasable Cable Tie 180x6.5 mm, black
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (Metric) 46.0mm
Bundle ∅ 12.0-46.0mm
Bundle ∅ min. 12.0mm
Length (L) 180mm
Min.Tensile Strength 150N
Thickness (T) 1.2mm
Weight/Unit 0.0015kg
Width (W) 6.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B, csa-C22.2 no. 18.5, csa-C22.2 no. 62275
UL OCD link Link
UL Type 11
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660331930
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.305m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00217
Packaging 1 - Weight (kg) 0.170001kg
Packaging 1 - Width (m) 0.203m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 7.60204kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 173.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
