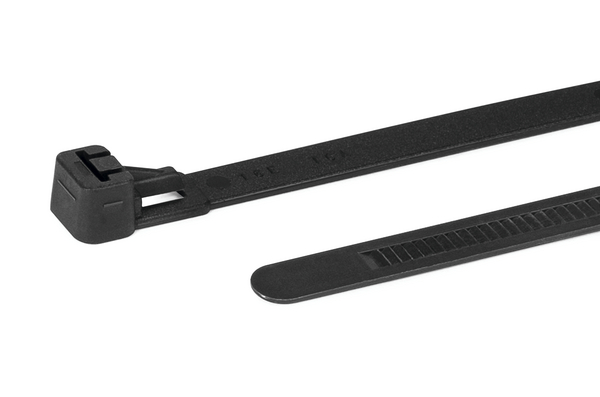

Releasable cable tie, 250x7.6mm, Ø16.0-68.0mm, 200N, black, 100pcs.
Art.-No. 131-22510 | REL250-PA66-BK Details

  • Releasable and reusable cable tie for medium-weight loads
  • Extremely easy-to-operate release mechanism
  • Opens simply and quickly with only one hand
  • Also available in PA66W for outdoor applications
  • REL cable ties have their serration on the inside
Show more

Request your individual offer now

Application The REL-Series is ideally used in applications where changes are anticipated and a tie needs to be opened and closed repeatedly. The release mechanism of an REL cable tie allows simple and quick opening with only one hand. UV resistant cable ties manufactured from PA66W are recommended for outdoor applications.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Local order number REL250.NB3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION REL250-PA66-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family REL-Series
Product Group Cable ties inside serrated with kickdown lever
Releasable Closure (Yes/No) Yes
Short Description Releasable Cable Tie 250x7.6 mm, black
Tie Closure plastic pawl
Type REL250
Variant Outside Serrated
Bundle Diameter max (metric) 68.0mm
Bundle ∅ 16.0-68.0mm
Bundle ∅ min. 16.0mm
Length (L) 250mm
Min.Tensile Strength 200N
Thickness (T) 1.2mm
Weight/Unit 0.0026kg
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications csa-C22.2 no. 62275
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660019326
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.406m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0033
Packaging 1 - Weight (kg) 0.260001kg
Packaging 1 - Width (m) 0.203m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 8.60203kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 193.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
