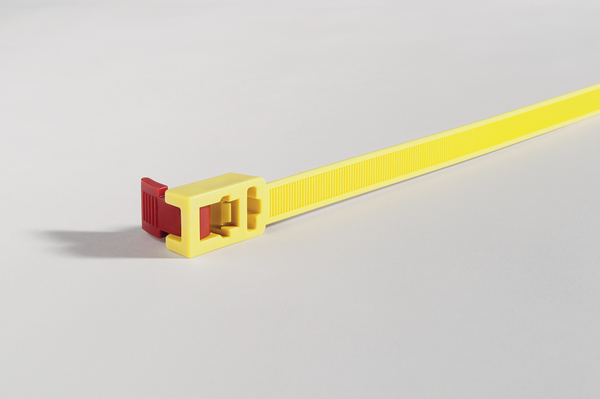

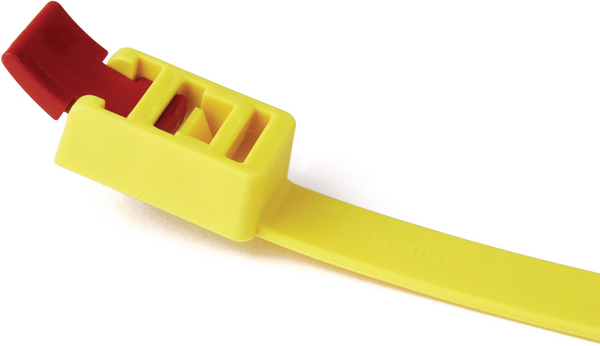

Cable Tie with quick release mechanism  SpeedyTie (RTT750HR)

SpeedyTie, Article number: 115-00000

Features

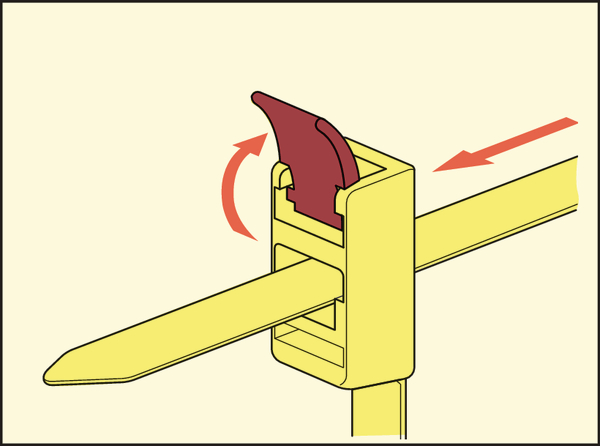

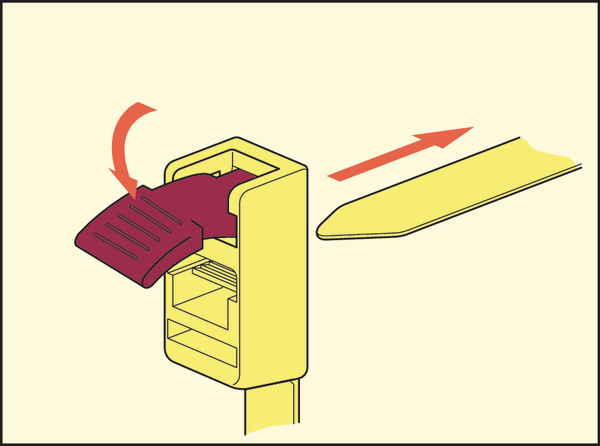

  • Releasable and reusable cable tie
  • Bears loads of up to 888 N (approx. 90 kg)
  • 750 mm long for use in a wide variety of applications

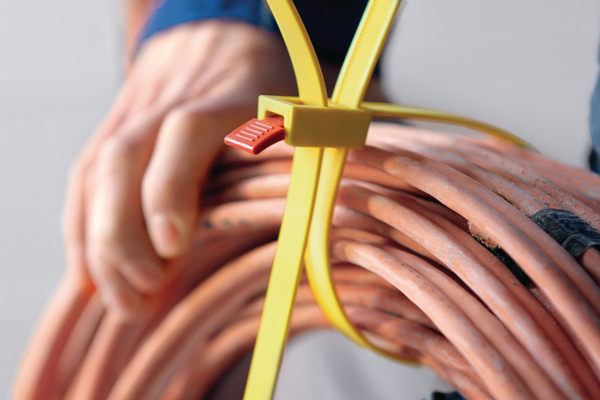

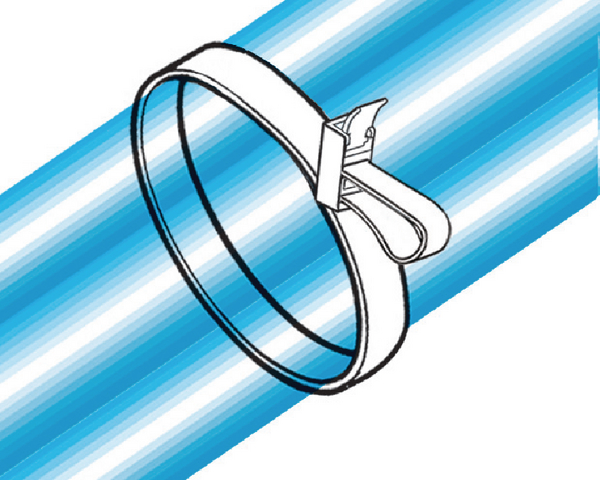

  • Can be used for parallel bundling
  • Easy to handle when wearing work gloves
  • Available in signal yellow and in black

Certifications & Approvals

Application

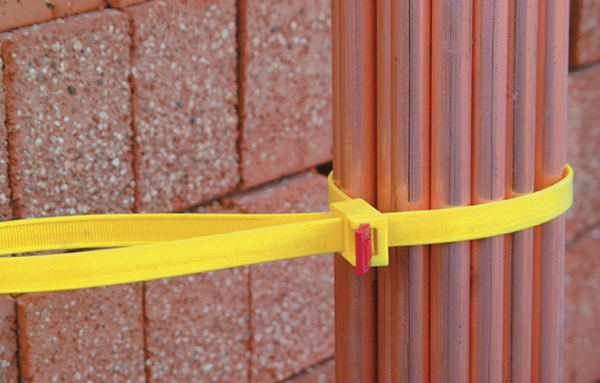

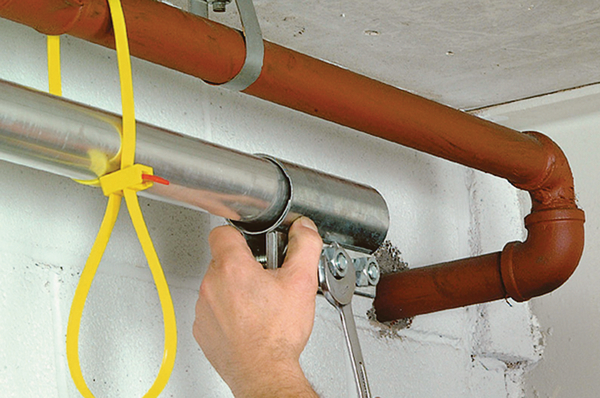

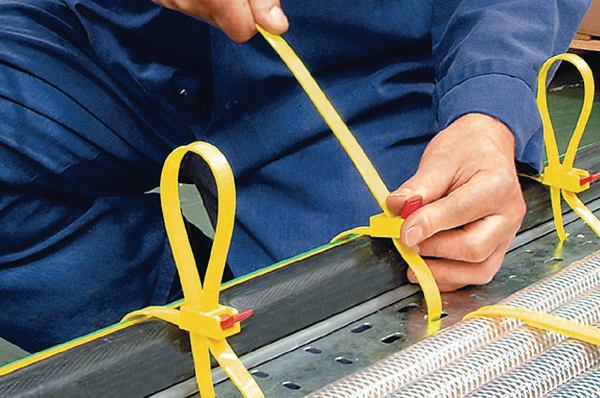

The versatility of the SpeedyTie means that it is suitable for a multitude of applications like electro installations, heating and ventilation, construction, exhibitions and trade fairs. Whether it is used for permanent or temporarily solutions the SpeedyTie is a very strong helping hand in every situation.

SpeedyTie is suitable for following markets and industries

Colour Yellow (YE), Red (RD)
Description Short (BMEcat) (max. 150 characters) Cable Tie with quick release mechanism Speedy-Click 752x13 mm yellow
GLOBAL PART DESCRIPTION SpeedyTie (RTT750HR)-PA66-RD/YE
Identification Plate Position none
Pack Cont. 25pcs.
Package Quantity per Bag
Product Family SpeedyTie
Product Group Cable Tie with quick release mechanism
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type RTT750HR.NX1P
Variant Inside Serrated
Bundle ∅ max. 210.0mm
Bundle ∅ min. 40.0mm

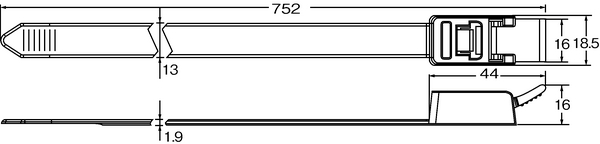

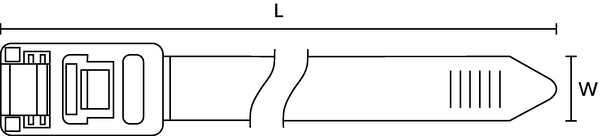

Length (L) 752.0mm
Min.Tensile Strength 888.0N
Thickness (T) 1.9mm
Width (W) 13.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 4031026229461
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.79m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00593
Packaging 1 - Weight (kg) 0.586kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.162m
Packaging 3 - Length (m) 1.2m
Packaging 3 - Qty 200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0385
Packaging 3 - Weight (kg) 5.138kg
Packaging 3 - Width (m) 0.198m
Packaging 4 - Height (m) 1.117m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 4800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.072
Packaging 4 - Weight (kg) 144.312kg
Packaging 4 - Width (m) 0.8m
Weight 0.561kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
