For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

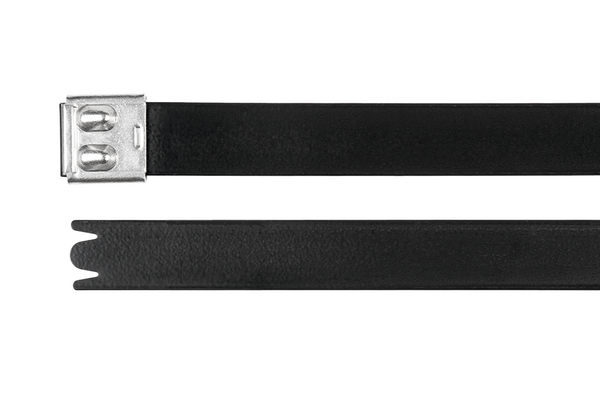

Stainless steel cable tie, ball bearing lock, 681x16mm, Ø25-100mm, black, 50pcs.
Art.-No. 111-01521 | MBT27UHDFC-SS316/SP-BK Details

  • MBT cable ties, made from stainless steel SS316 with a polyester coating
  • Non-releasable locking feature
  • Double wrap operation
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Show more

Request your individual offer now

Application The MBT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits. Fully coated ties can also be used to avoid any reflection. An important consideration for instance in the defence industry.
Application Tool HDT16, MK9SST
Colour Black (BK)
Identification Plate Position none
Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Key product features vibration absorbing
Local order number MBT27UHDFC.M1P
Material Stainless Steel (SS316), Polyester (SP)
Pack Cont. 50pcs.
Package Content packed in Bag
PART DESCRIPTION MBT27UHDFC-SS316/SP-BK
Product Family MBTXHDFC- / MBTUHDFC-Series, stainless steel 316
Product Group Double wrap cable ties with ball-lock and coating
Releasable Closure (Yes/No) No
Short Description Stainless Steel Cable Tie 681x16 mm, black
Tie Closure ball bearing lock
Variant Not Serrated
Bundle Diameter max (Metric) 100mm
Bundle ∅ 25-100mm
Bundle ∅ min. 25mm
Length (L) 681mm
Min.Tensile Strength 5000N
Thickness (T) 0.38mm
Weight/Unit 0.0028kg
Width (W) 16mm
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning (except coating)
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Operating Temperature Coating -50 °C to +150 °C
Specifications
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660341748
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.389m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00123
Packaging 1 - Weight (kg) 0.140001kg
Packaging 1 - Width (m) 0.09m
Packaging 3 - Height (m) 0.15m
Packaging 3 - Length (m) 0.415m
Packaging 3 - Qty 300
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0199
Packaging 3 - Weight (kg) 1.34kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 77.28kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
