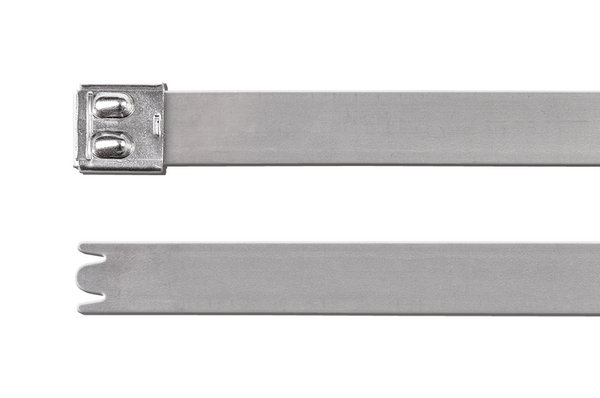

Double wrap cable ties with ball-lock MBT33UHD

MBTXHD- / MBTUHD-Series, stainless steel 316, Article number: 111-01313

Features

  • Stainless steel MBT ties with double wrap operation

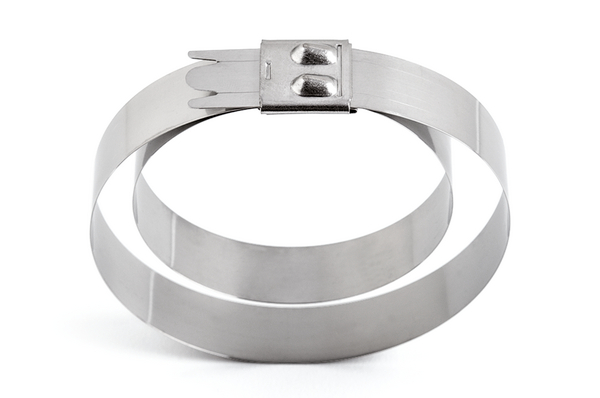

  • Wraps around the bundle and passes through the head twice
  • Very high tensile strength to carry enormous applied loads
  • Head with two locking balls
  • Resistant to arduous conditions and environments

Certifications & Approvals

Application

The double wrap ties of the MBT-series are used in applications where a fixing requires an extraordinary high tensile strength.

MBTXHD- / MBTUHD-Series, stainless steel 316 is suitable for following markets and industries

Application Tool HDT16, MK9SST
Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Double Wrap Metal Cable Ties with Ball-Lock 838x16.0 mm
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per Bag
PART DESCRIPTION MBT33UHD-SS316-ML
Product Family MBTXHD- / MBTUHD-Series, stainless steel 316
Product Group Double wrap cable ties with ball-lock
Releasable Closure (Yes/No) No
Tie Closure ball bearing lock
Type MBT33UHD.M9P
Variant No Serration
Bundle ∅ max. 120mm
Bundle ∅ min. 25mm
Length (L) 838mm
Min.Tensile Strength 7000N
Thickness (T) 0.27mm
Width (W) 16.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability Non burning
Halogenfree Yes
Hazardous good No
Limited Fire Hazard Yes
Material Stainless Steel (SS316)
Operating Temperature - °C -80 °C to +538 °C
Specifications
EAN / GTIN 5022660339639
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.389m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00123
Packaging 1 - Weight (kg) 1.62kg
Packaging 1 - Width (m) 0.09m
Packaging 3 - Height (m) 0.115m
Packaging 3 - Length (m) 0.91m
Packaging 3 - Qty 500
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0272
Packaging 3 - Weight (kg) 16.7kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 13500
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 471.9kg
Packaging 4 - Width (m) 0.8m
Weight 1.62kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
