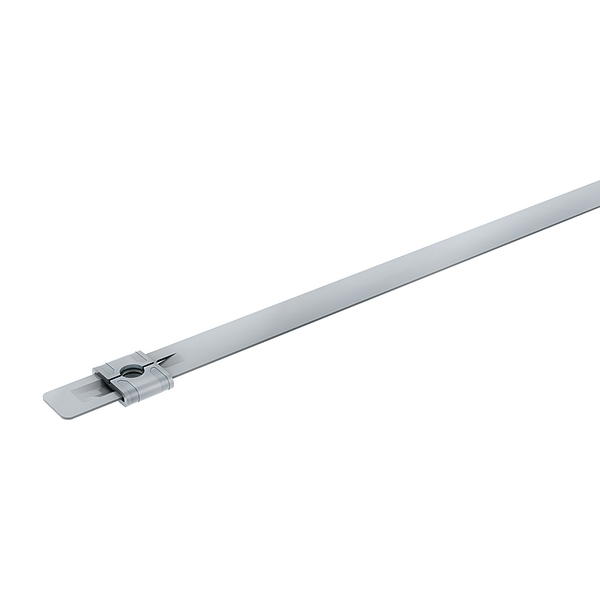

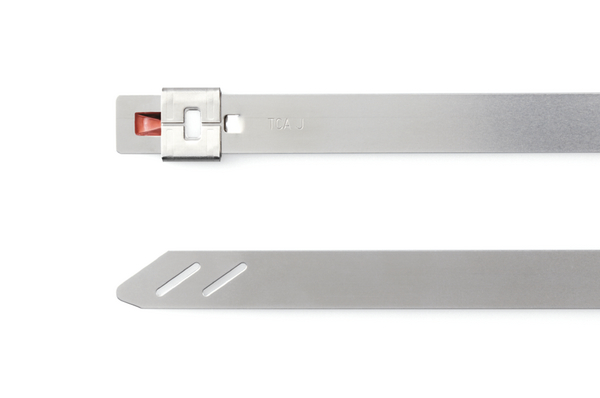

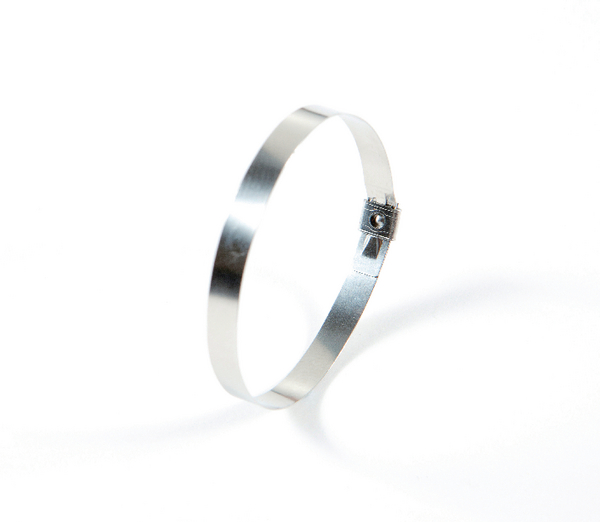

Stainless steel cable tie, punch lock, 207x5.9mm, ∅5-50.0mm, metal, 100pcs.
Art.-No. 111-01549 | MST200S-SS304-ML Details

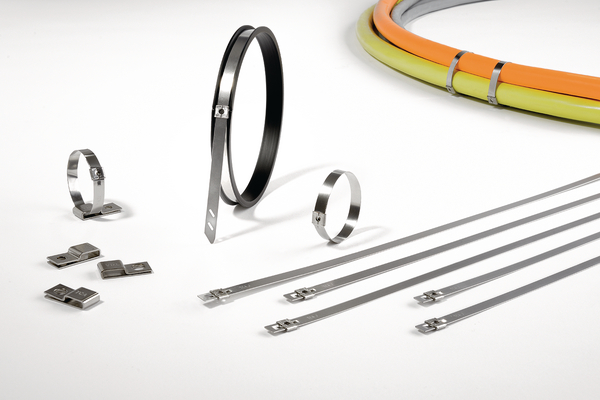

  • MST-Series cable ties are made from stainless steel 304
  • No loosening after bundling
  • Corrosion and weather resistant
  • Significantly improved vibration resistance
  • Outstanding chemical resistance
  • Space saving solution
  • Safe cut-off (no sharp edges)
  • High temperature resistant
  • Non-burning
Show more

Request your individual offer now

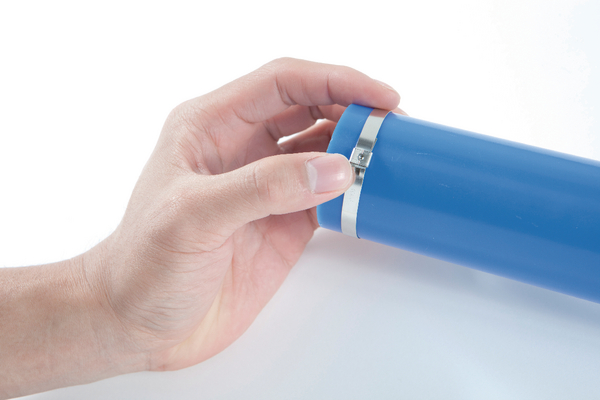

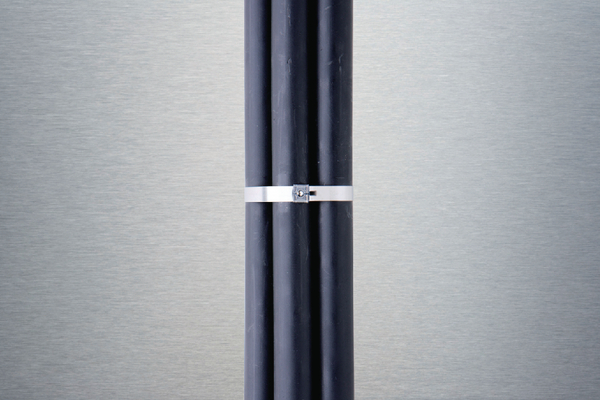

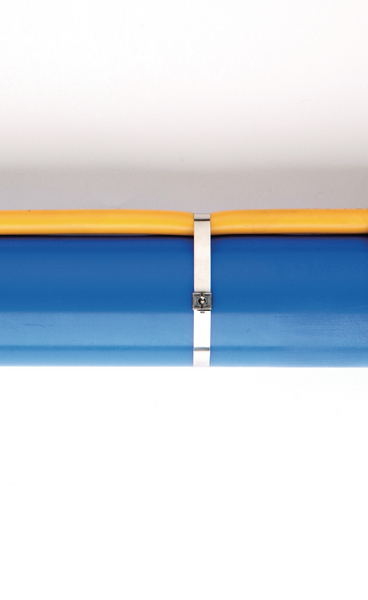

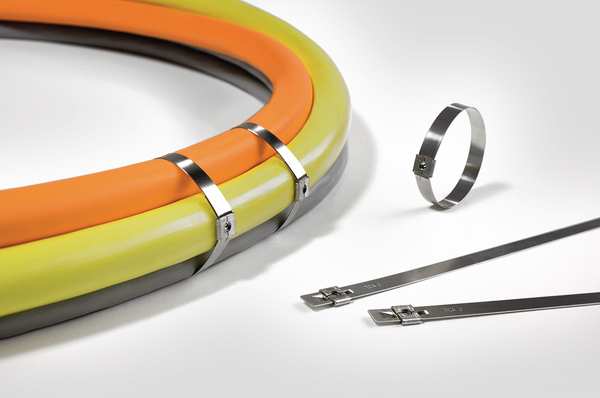

Application Stainless steel cable ties are designed for fixing loads and cables securely in hazardous industrial environments such as railway carriages, jet engines, inside power plants or on offshore drilling platforms, where exposure to extremes of weather, saltwater and temperature are common. The MST-Series tie with its new punch-locking mechanism is an excellent choice especially for environments which require high resistance to vibrations.
Colour Metal (ML)
Description Stainless steel tie with a new locking mechanism!
Fixation Method Others
Identification Plate Position none
Key product features vibration absorbing
Local order number MST200S
Material Stainless Steel (SS304)
PART DESCRIPTION MST200S-SS304-ML
Pack Cont. 100pcs.
Package Content packed in Bag

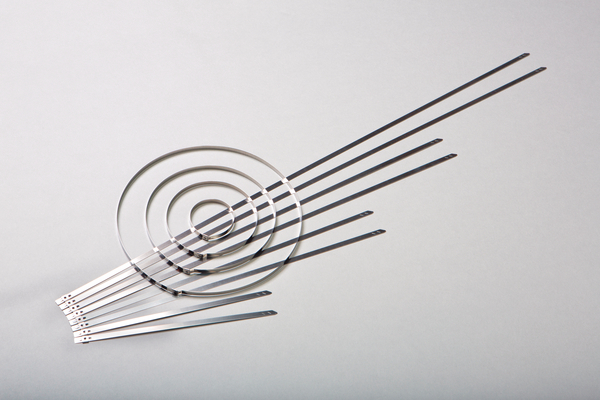

Product Family MST-Series, stainless steel 304
Product Group Cable ties with punch-locking mechanism
Releasable Closure (Yes/No) No
Short Description Stainless Steel Cable Tie with punch-locking mechanism 207x5.9 mm

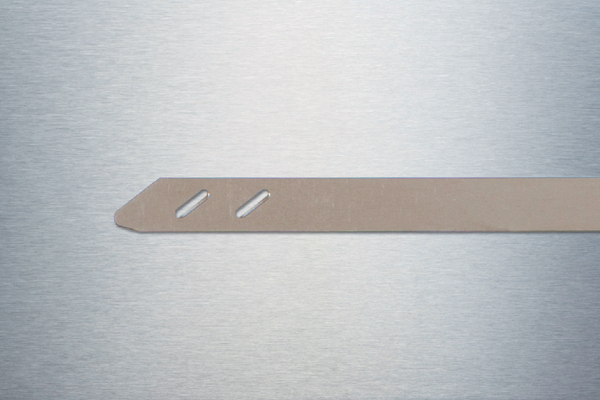

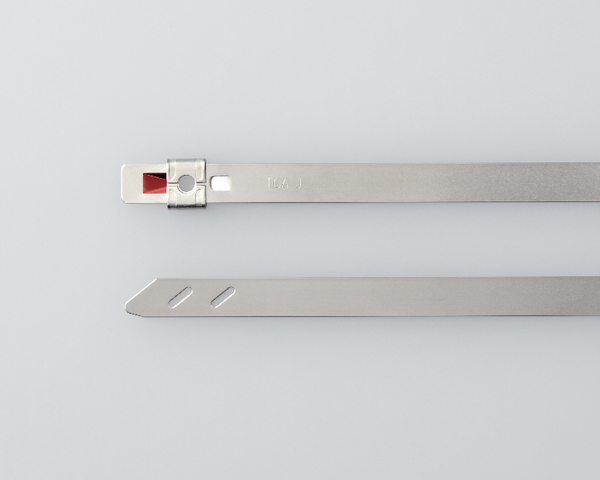

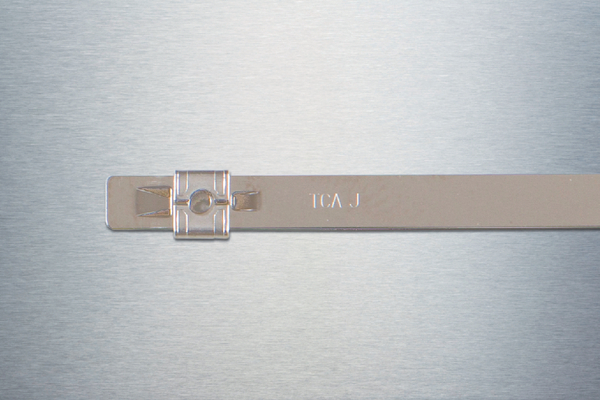

Tie Closure punch lock
Type MST200S
Variant Not Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 5-50.0mm
Bundle ∅ min. 5mm

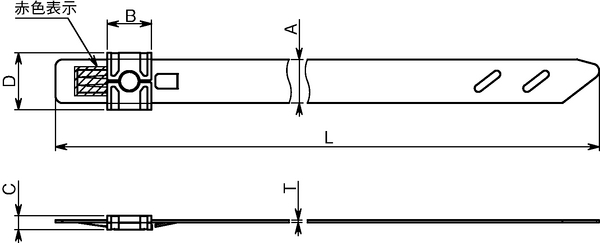

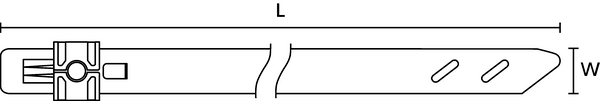

Length (L) 207mm
Min.Tensile Strength 900N
Thickness (T) 0.3mm
Weight/Unit 0.00329kg
Width (W) 5.9mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
Specifications IEC 62275:2006, IEC 62275 (2006-10)
Country of Origin JP
Customs Number 73269098
GTIN-13 / EAN 4944387105667
Packaging 1 - Height (m) 0.012m
Packaging 1 - Length (m) 0.153m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00016
Packaging 1 - Weight (kg) 0.329kg
Packaging 1 - Width (m) 0.088m
Packaging 3 - Height (m) 0.18m
Packaging 3 - Length (m) 0.312m
Packaging 3 - Qty 2500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0124
Packaging 3 - Weight (kg) 8.325kg
Packaging 3 - Width (m) 0.22m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 150000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 520.5kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
