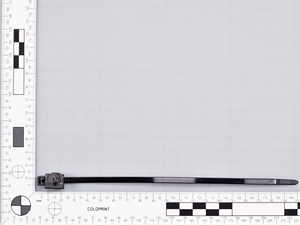

2-Piece Fixing Ties for Edges, twistable CBTOS50RSTUD5

CBTOS50RStud5 for max. bundle diameter 47.0 mm, rotatable 90 °, for parallel routing, Article number: 156-00380

Features

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Easy to assemble by hand
  • Cable tie head can be moved after bundling
  • For edges of 1 – 2.5 mm or 1 – 3 mm

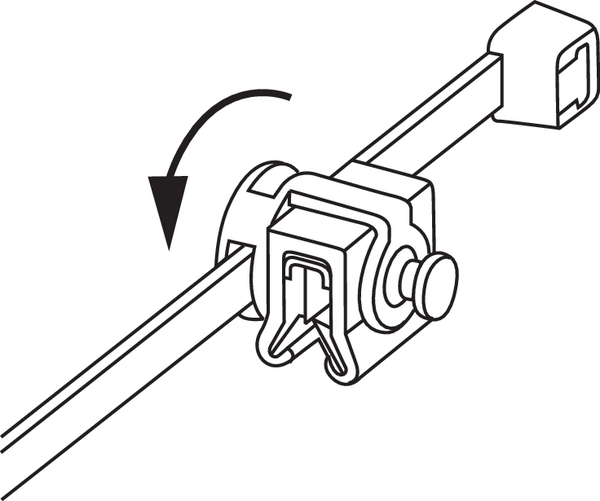

  • Can be rotated to the desired position

Certifications & Approvals

Application

These cable ties and Edge Clip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.

CBTOS50RStud5 for max. bundle diameter 47.0 mm, rotatable 90 °, for parallel routing is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description These EdgeClips are also mounted simply by pushing them onto an edge. A twistable EdgeClip is the ideal solution whenever flexible routing of cable bundles is required. The cable route can even be modified post-installation. The clips are available in 90° and 360° models for use with different types of cable tie. On the CBT30MR the bundle runs at the side of the clip, on the CBTO50R it runs over the centre of the clip.
Description Short (BMEcat) (max. 150 characters) 2-Piece fixing tie 100x2.45 mm, for edges, PA66HS/PA66HIRHS, black
Fixation Method Edge Clips with tie
GLOBAL PART DESCRIPTION CBTOS50RSTUD5-PA66HS/PA66HIRHS-BK
Identification Plate Position none

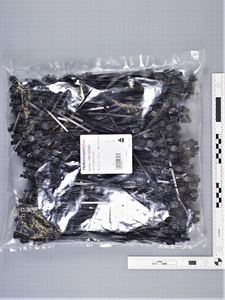

Pack Cont. 1000pcs.
Package Quantity per Carton
Product Family CBTOS50RStud5 for max. bundle diameter 47.0 mm, rotatable 90 °, for parallel routing
Product Group 2-Piece Fixing Ties for Edges, twistable
Type 156-00380
Variant Inside Serrated
Bundle ∅ max. 47.0mm
Bundle ∅ min. 2.0mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Length (L) 200mm
Min.Tensile Strength 225N
Strap Width max. (G) 4.6mm
Strap Width max. (G) (imperial) 0.18
Width (W) 4.6mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 4031026333038
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.395m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0237
Packaging 3 - Weight (kg) 6.42kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 277.8kg
Packaging 4 - Width (m) 0.8m
Quantity of UK Pallet 30000
Weight 6kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
