Fixing tie for hole (round), outside serrated, Ø27.0-44.0mm, black, 100pcs.
Art.-No. 115-40902 | RELF170-PA66HIR-BK Details

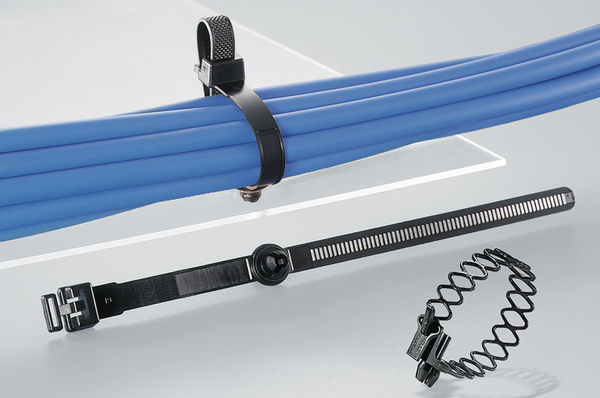

  • Simple to install with wings to lock ties firmly in place
  • Releasable and reusable
  • RELF and RI ranges are conventional 'serrated' cable ties
  • FBR range has a 'ladder-type' design for a very flexible strap

Request your individual offer now

Application Offering a very secure fixing, particularly in applications suffering from vibration, these rivet fixing ties are simple and quick to install. Designed originally for the automotive industry they are now widely used in many industries as diverse as agriculture and ship building.
Application Tool MK9P, MK9P w/ Upper air, EVO7SP, EVO7i, EVO9, EVO9HT
Colour Black (BK)
Fixation Method Rivet Fixing
Identification Plate Position none
Local order number RELF170.IB3P
Material Polyamide 6.6, high impact modified (PA66HIR)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION RELF170-PA66HIR-BK
Product Group 1-Piece Fixing Ties with rivet, releasable
Releasable Closure (Yes/No) Yes
Short Description Fixing tie 180x8 mm, high impact modified, black
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (Metric) 44.0mm
Bundle ∅ 27.0-44.0mm
Bundle ∅ min. 27.0mm

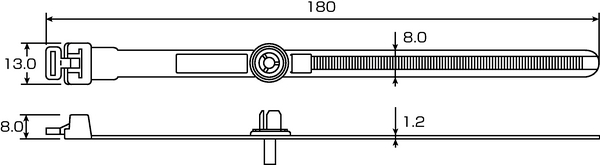

Cable Tie Head Height (metric) 8.0mm
Cable Tie Head Width (metric) 13mm
for Panel Thickness min - max 2.5 - 2.5 mm
Height (H) 18.0mm
Length (L) 180mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Weight/Unit 0.00288kg
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL OCD link Link
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660138720
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.355m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00522
Packaging 1 - Weight (kg) 0.288001kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 6.56202kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 152.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
