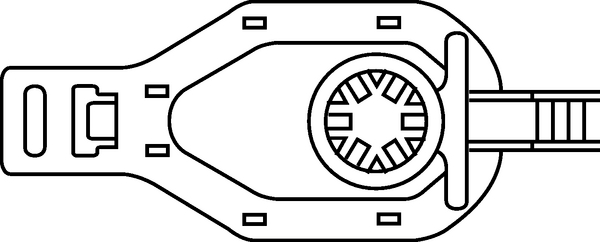

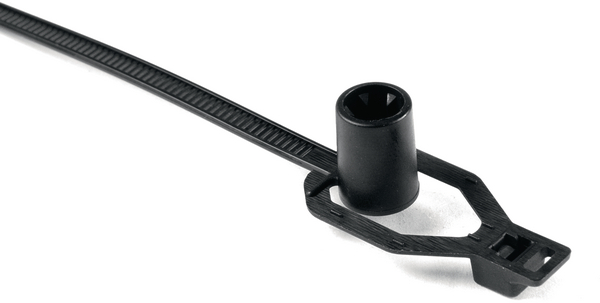

Fixing tie for stud, inside serrated, Ø9.0-40.0mm, black, 100pcs.
Art.-No. 115-07110 | RT50RS5-PA66-BK Details

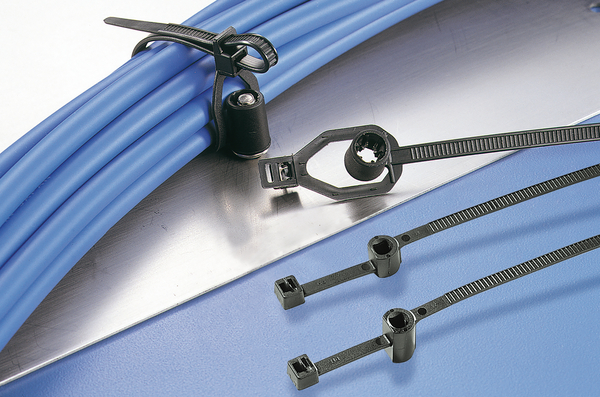

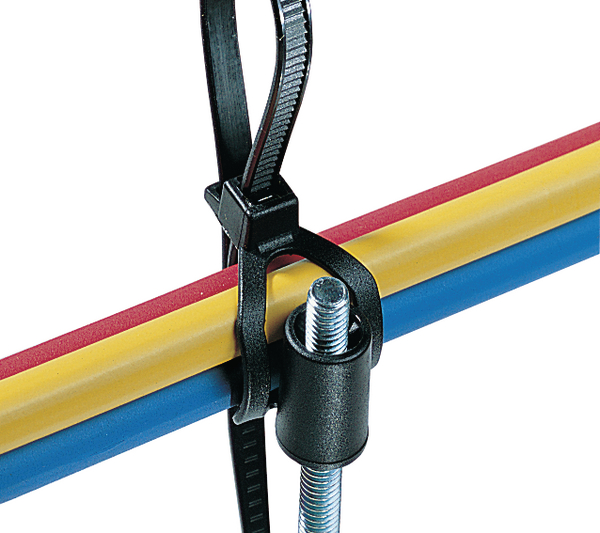

  • For 5 mm studs or 5 mm ISO threaded studs
  • Soft-push versions for easy assembly, without tool
  • Hard-push versions for special firm fit need to be hammered onto the stud
  • Releasable types: RT50RS5 and SB

Request your individual offer now

Application -
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Key product features releasable
Local order number RT50RS5.NB3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type M5 Screw
PART DESCRIPTION RT50RS5-PA66-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family softpush, releasable
Product Group 1-piece fixing ties for weld studs in the strap
Releasable Closure (Yes/No) Yes
Short Description 1-Piece Fixing Tie for Weld Studs in the strap PA66 190x4.6 black
Tie Closure plastic pawl
Type RT50RS5
Variant Inside Serrated
Bundle Diameter max (metric) 40.0mm
Bundle ∅ 9.0-40.0mm
Bundle ∅ min. 9.0mm
Height (H) 1.5mm
Height (H2) 14.5mm
Length (L) 190mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Thickness (T) 1.5mm
Weight/Unit 0.002216kg
Width (W) 4.6mm
Width (W2) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026108544
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00464
Packaging 1 - Weight (kg) 0.221601kg
Packaging 1 - Width (m) 0.215m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 5.23402kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 125.68kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
