Fixing tie for stud, outside serrated, ⌀2.0-45.0mm, black, 500pcs.
Art.-No. 156-03077 | S50ROSDSB5-6H-PP/PA66HIRHS-BK |

Pre-assembled 2-piece fixing tie with stud retainer
For parallel routing of cables, hoses or harnesses
Cable tie head can be moved after bundling
The S50ROS features a significantly lower CO₂ footprint compared to cable ties made of standard material, in line with sustainability goals in various industries
The outside serration design ensures gentle handling of sensitive cables and bundles, reducing the risk of damage during installation and maintenance
With an anti-slip feature on the inside, the S50ROS prevents undesired lateral movement of cables and bundles, maintaining tidy and organized cable management within vehicles
For 5 and 6 mm studs or 5 and 6 mm ISO threaded studs

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	S-Series cable ties made from Polypropylene (PP) are non hydroscopic, offer a higher chemical resistance and reduced CO2 footprint compared to a standard cable tie material. These cable ties are used to bundle and secure cables, pipes and/or hoses.
Cable Tie	Polypropylene (PP)
Colour	Black (BK)
Description	Fixing tie for stud, outside serrated, ⌀2.0-45.0mm, black
Fixation Method	Stud Mount
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Key product features	for multiple routing
Local order number	S50ROSDSB5-6H-PP/PA66HIRHS-BK
Material	Polypropylene (PP), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Min.Tensile Strength	185N
PART DESCRIPTION	S50ROSDSB5-6H-PP/PA66HIRHS-BK

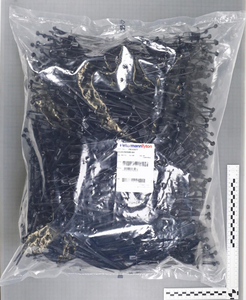

Package Content	500pcs.
Product Family	Fixing tie for stud
Product Group	Fixing tie for stud
Releasable Closure (Yes/No)	No

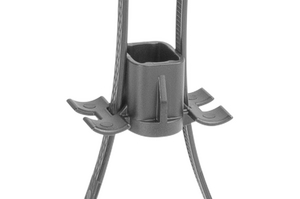

Short Description	CO2 reduced cable tie "S50ROS" for studs T5, M5, T6, M6 and parallel routing.
Tie Closure	plastic pawl
Type	S50ROSDSB5-6H
Variant	Outside Serrated with AntiSlip Engraving
Weight/Unit	0.004625kg

ELV compliant Dir. Art. 4 (2)	YES
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +110 °C, (3000 h)
ROHS compliant	Yes
