20/07/2024

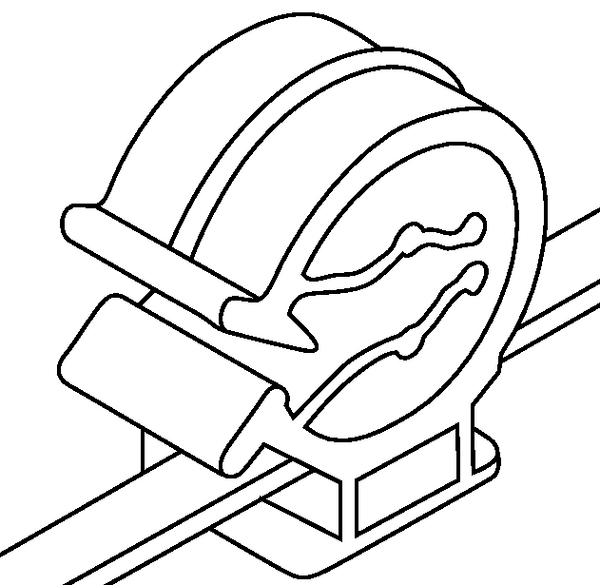

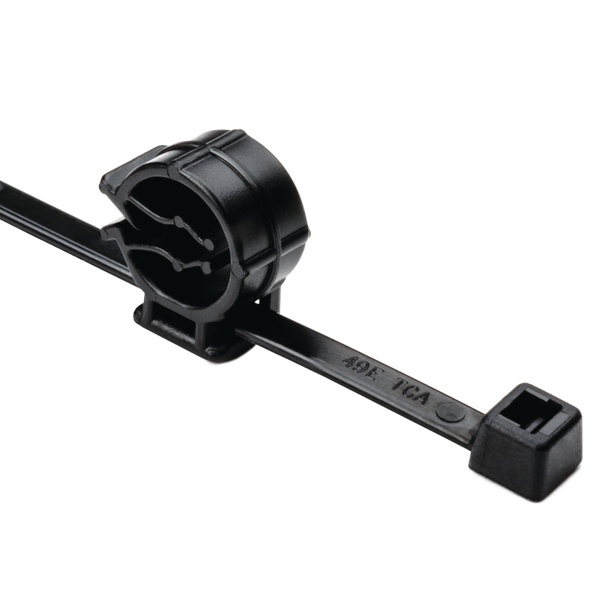

Fixing tie with pipe/tube holder, inside serrated, ∅4.0-31.0mm, black, 500pcs.
Art.-No. 156-00012 | T30ROC1A-PA66HS/PA66HIRHS-BK Details

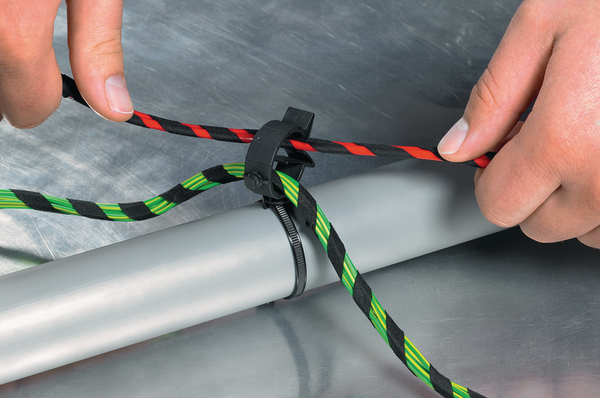

  • For post-installation of additional cables for preassembled cable looms
  • Variety of twist angles and even different loop directions provide flexibility for cable routing
  • Additional cable tie dimensions are available

Request your individual offer now

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Local order number T30ROC1-MC5-BK-D
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T30ROC1A-PA66HS/PA66HIRHS-BK

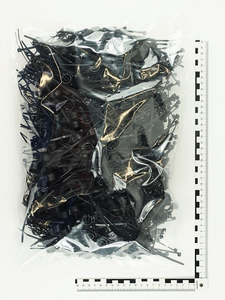

Pack Cont. 500pcs.
Package Content packed in Bag
Product Group 2-piece fixing ties with pipe clip
Short Description 2-Piece fixing tie 148x3.6 mm, with pipe clip, PA66HS/PA66HIRHS, black
Type T30ROC1A
Attach to Diameter 0.16 - 0.39 "
Attach to Ø 4.0 - 10.0
Bundle Diameter max (metric) 31.0mm
Bundle ∅ 4.0-31.0mm
Bundle ∅ min. 4.0mm
Length (L) 148.0mm
Min.Tensile Strength 135N
Thickness (T) 1.1mm
Weight/Unit 0.001946kg
Width (W) 3.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026240725
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00833
Packaging 1 - Weight (kg) 1.002135kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 10.84135kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 151.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
