2-piece fixing ties for edges : T30ROSEC0.5-2.5SP-SVB

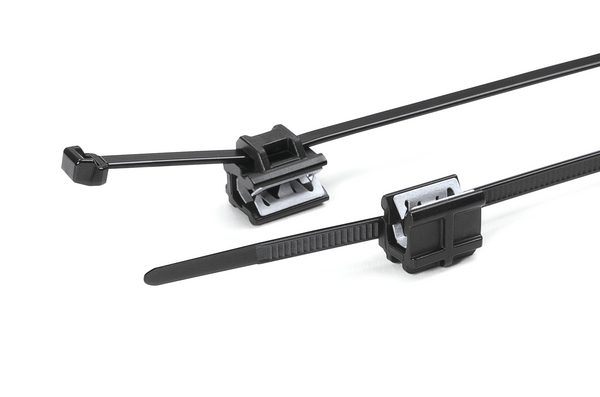

2-piece fixing tie150x3.5 mm with edgeclip 0.5 -2.5 mmArticle number: 156-01546
Features
- Springsteel clamp with interlocking claws
- For flat edges
- For thin edges 0.5 - 2.5 mm
- Small housing for limited space
- Pre-assembled 2-piece fixing tie with EdgeClip
- Cable tie head can be moved after bundling
Certifications & Approvals
Application
These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry. These EdgeClips are specially designed for applications where space is limited such as in mirrors and headlights.
More products in this product group
2-piece fixing ties for edges >| Application Tool | MK3PNSP2, MK3SP, MK20, EVO7 |
| Colour | Black (BK) |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T30ROSEC0.5-2.5SP-SVB-PA66HS/PA66HIRHS-BK |
| Product Family | EdgeClip-Series, 0.5 - 2.5 mm, side fixing |
| Product Group | 2-piece fixing ties for edges |
| Short Description | 2-piece fixing tie150x3.5 mm with edgeclip 0.5 -2.5 mm |
| Type | T30ROSEC0.5-2.5SP-SVB_MC5_D1 |
| Variant | Outside Serrated |
| Bundle ∅ max. | 30.0mm |
| Bundle ∅ min. | 1.6mm |
| for Panel Thickness min - max | 0.5 - 2.5 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| Height (H) | 1.2mm |
| Height (H2) | 12.6mm |
| Length (L) | 145.0mm |
| Length (L2) | 13.0mm |
| Min.Tensile Strength | 133N |
| Panel Thickness max. | 0.5 – 2.5mm |
| Width (W) | 3.4mm |
| Width (W2) | 10.8mm |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026530505 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.881815kg |
| Packaging 1 - Width (m) | 0.41m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.92904kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 200.184kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.86kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
