Under Development - For further questions please ask your Sales Contact Person.

2-piece fixing ties for edges : T30ROSEC0.5-2.5TP-SD

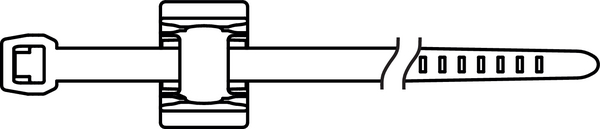

2-piece fixing tie145x3.4 mm with edgeclip 0.5 -2.5 mm top fixing black, Article number: 156-01543

Add to watchlist

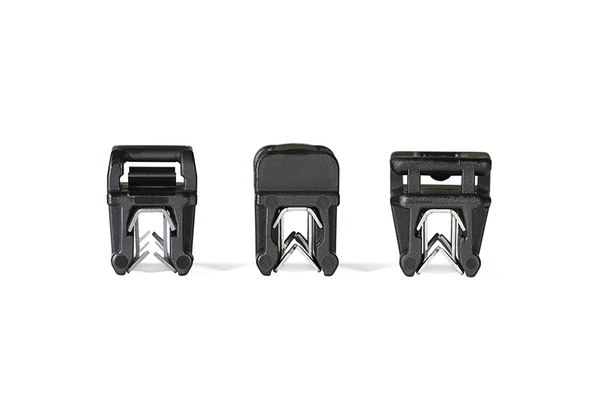

The Mini-EdgeClip family is our solution for limited spaces.

Features

For flat edges
For thin edges 0.5 - 2.5 mm
Small housing for limited space
Pre-assembled 2-piece fixing tie with EdgeClip
Cable tie head can be moved after bundling

Certifications & Approvals

Application

These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where adhesives will fail due to temperature problems. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry. These EdgeClips are specially designed for applications where space is limited such as in mirrors and headlights.

EdgeClip-Series, 0.5 - 2.5 mm, top fixing is suitable for following markets and industries

More products in this product group

2-piece fixing ties for edges >

Base Data

Application Tool	MK3PNSP2, MK3SP, MK20, EVO7
Colour	Black (BK)
Fixation Method	EdgeClip, top, assembled, 2 piece
Identification Plate Position	none
Internet Customer Notice	Under Development - For further questions please ask your Sales Contact Person.
Pack Cont.	500pcs.
Package Quantity per	Bag
PART DESCRIPTION	T30ROSEC0.5-2.5TP-SD-PA66HS/PA66HIRHS-BK
Product Family	EdgeClip-Series, 0.5 - 2.5 mm, top fixing
Product Group	2-piece fixing ties for edges
Short Description	2-piece fixing tie145x3.4 mm with edgeclip 0.5 -2.5 mm top fixing black
Type	T30ROSEC0.5-2.5TP-SD_MC5_D1

Product Dimensions

Bundle ∅ max.	30.0mm
Bundle ∅ min.	1.6mm
for Panel Thickness min - max	0.5 - 2.5 mm
Height (H)	1.2mm
Height (H2)	12.6mm
Length (L)	145.0mm
Length (L2)	13.0mm
Min.Tensile Strength	135N
Thickness (T)	1.2mm
Width (W)	3.4mm
Width (W2)	10.9mm

Material and Specifications

Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2)	YES
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good	No
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C	-40 °C to +105 °C, (+105 °C for 500 h)
Specifications

Logistics and Packaging


EAN / GTIN	4031026530475
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.3m
Packaging 1 - Qty	500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.01845m³
Packaging 1 - Weight (kg)	0.821815kg
Packaging 1 - Width (m)	0.41m
Weight	0.8kg
