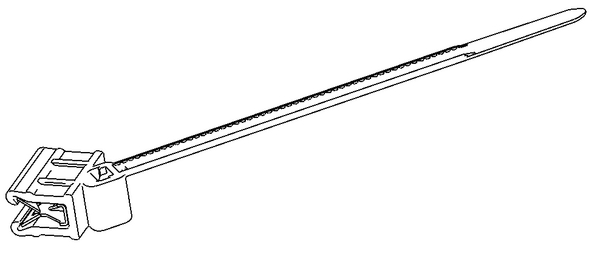

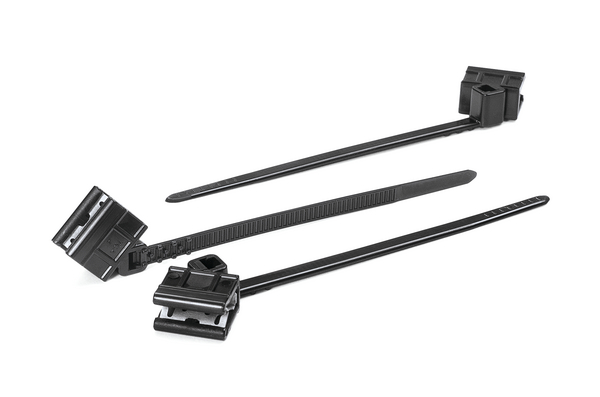

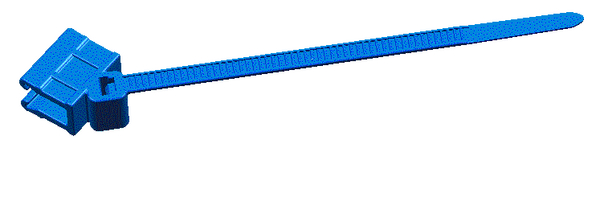

Fixing tie for edge, inside serrated, Ø1.6-15.0mm, black, 500pcs.
Art.-No. 133-00059 | T40XEC5SP-E-PA66HS-BK Details

  • Easy assembly, just clip on per hand
  • For edges of 1 - 3 mm, 3 - 6 mm, 4 - 6 mm or 6 - 8 mm

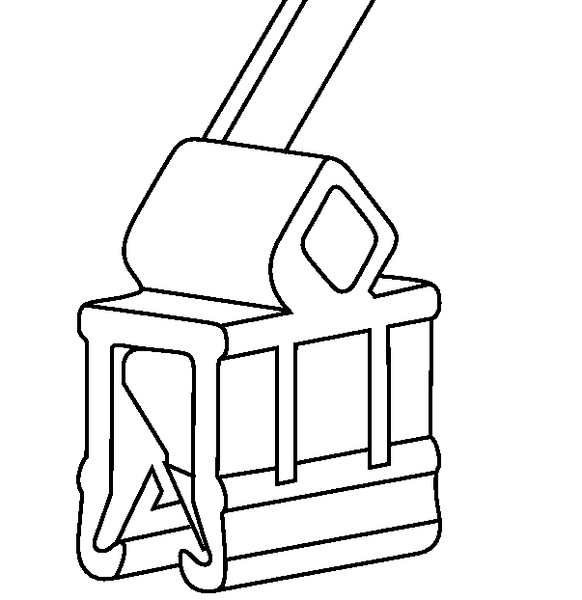

  • Integrated metal clamp holds clip firmly in place
  • Clamp consists of double tempered steel spring
  • Ideal for applications where holes or adhesives are not suitable
Show more

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. Once the cable tie is fastened around the cables the EdgeClip is presented ready for attaching to the panel. Widely used within the automotive and panel building industries these cable ties and EdgeClips save time and money. The silver-grey clamp, the heart of our EdgeClips, consists of doubletempered spring steel in accordance with DIN EN 10132-4 C75S. The spring steel gives the clamp both the necessary rigidity to provide high pull-off forces and also sufficient flexibility for various possible applications. The double coating is applied initially with a zinc plate system followed by inorganic surface sealing. Naturally, no chromium (VI) is used in this process. The clamp therefore complies with the current EU Directive 200/53/EC on end of life vehicles and the prohibition on heavy metals. The refined spring-steel clamp also fulfils the requirements for resistance to salt spray stipulated in DIN EN ISO 9227 NSS (min. 840 h without corrosion of base metal) and DIN EN ISO 6270-Z-CH (min. 720 h without corrosion of base material). This solution has therefore been approved by many OEMs for exposed installation locations, e.g. in engine compartments and the running-gear area.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Colour Black (BK)
Description HellermannTyton’s Cable Tie with Edge Clip is designed to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place. This fastener is molded as a one-piece clip and tie combination.
Fixation Method Edge Clip
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION T40XEC5SP-E-PA66HS-BK
Product Family EdgeClip-Series
Product Group 1-piece fixing ties for edges
Releasable Closure (Yes/No) No
Short Description Fixing tie 85x4 mm, heat stabilised, black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 15.0mm
Bundle ∅ 1.6-15.0mm
Bundle ∅ min. 1.6mm
for Panel Thickness min - max 1 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.2mm
Height (H2) 11.6mm
Length (L) 85.0mm
Min.Tensile Strength 178N
Panel Thickness max. 1.0 - 3.0mm
Weight/Unit 0.0018kg
Width (W) 4.0mm
Width (W2) 8.3mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026238234
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.018
Packaging 1 - Weight (kg) 0.921993kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.883916kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 163.608kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
