Fixing tie for cable bundles, inside serrated, Ø2.0-47.0mm, black, 500pcs.
Art.-No. 156-00276 | T50RCOUPLER-PA66HIRHS/PA66HIR(S)-BK Details

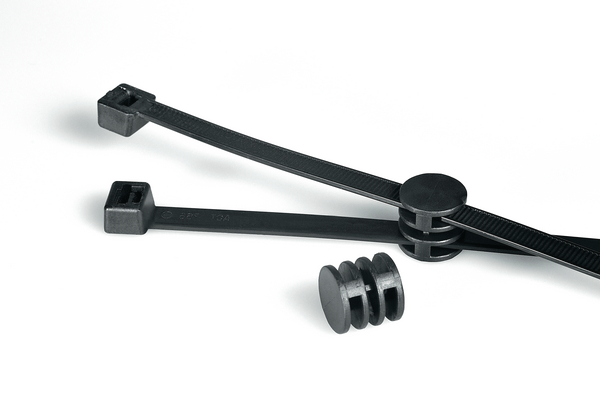

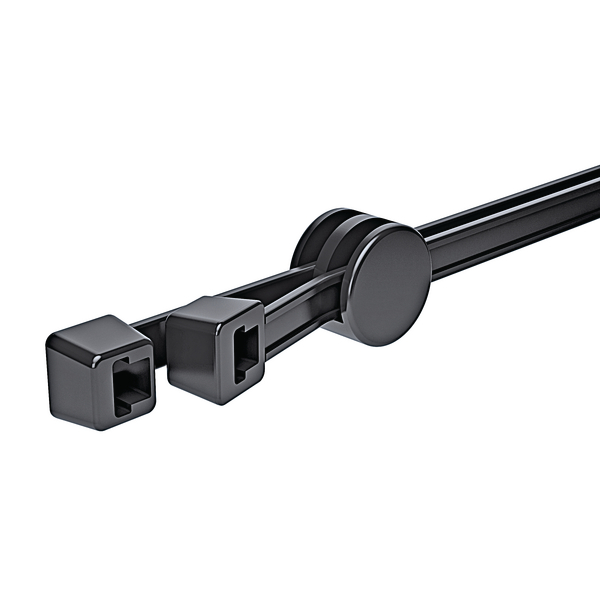

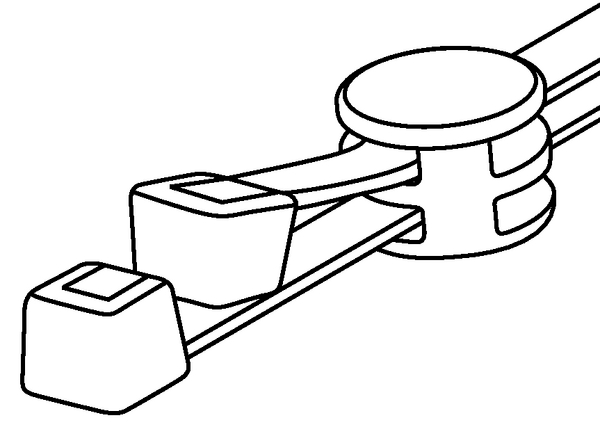

  • Pre-assembled 2-piece fixing tie with coupler
  • Cable tie head can be moved after bundling
  • Easy addition of cables after assembly

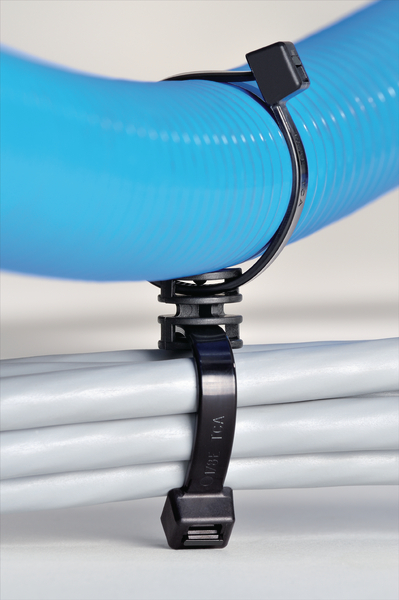

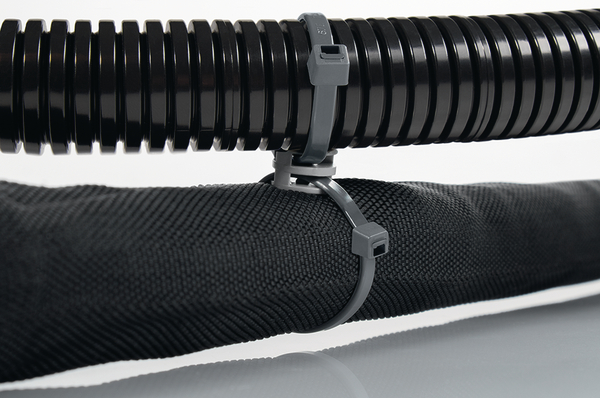

  • For parallel routing of bundles that can be twisted 90° even after installation

Request your individual offer now

Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour Black (BK)

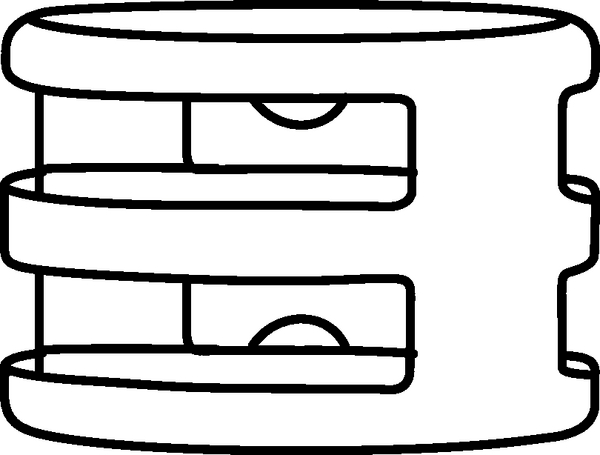

Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for multiple routing
Local order number 17331
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, scan black (PA66HIR(S))
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION T50RCOUPLER-PA66HIRHS/PA66HIR(S)-BK
Product Family T50RCoupler for max. bundle diameter 2 x 47.0 mm
Product Group 2-piece fixing ties for parallel separation
Short Description 2-Piece fixing tie 145x3.4 mm, for parallel separation, PA66HIRHS, black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 47.0mm
Bundle ∅ 2.0-47.0mm
Bundle ∅ min. 2.0mm
Length (L) 202.0mm
Min.Tensile Strength 225N
Strap Width max. (G) 4.7mm
Strap Width max. (G) (imperial) 0.185
Weight/Unit 0.003143kg
Width (W) 4.6mm
∅ max. 1. loop 50.0mm
∅ per loop max. 50.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026436074
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.41m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01205
Packaging 1 - Weight (kg) 1.5915kg
Packaging 1 - Width (m) 0.42m
Packaging 3 - Height (m) 0.15m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.018
Packaging 3 - Weight (kg) 3.552kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 56000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 219.912kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
