04/08/2025

Fixing tie for hole (round), inside serrated, ⌀1-45.0mm, grey/yellow, 500pcs.
Art.-No. 156-03308 | T50RDHA5.5x15-TP-PA46/PP-GY/YE |

Copied
DHA5.5x15 and DHA8.4x20 for blind hole applications.
T50RDHA8.4x20-PA46 for blind hole applications and with higher temperature requirements, include transportation cap to protect the harness during transportaion.

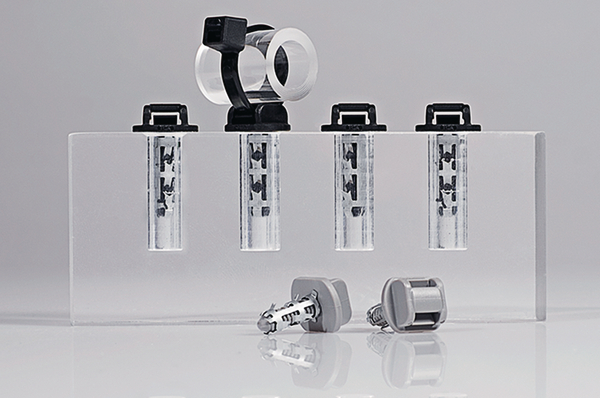

Fixing tie with deep hole anchor
Fixing tie with deep hole anchor
Fixing tie with deep hole anchor

    • Pre-assembled 2-piece fixing tie with deep hole anchor
    • The high 'pull off' forces are due to the integrated metal clamp
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
    • Suitable for use within blind holes with or without thread
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY), Yellow (YE)
    Identification Plate Position none
    Key product features deep hole anchor
    Local order number T50RDHA5.5x15-TP PA46/PP GY/YE
    Material Polyamide 4.6 (PA46), Polypropylene (PP)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RDHA5.5x15-TP-PA46/PP-GY/YE
    Package Content 500pcs.
    Package Content packed in Bag
    Product Family Deep hole anchor DHA5.5 - DHA8.4
    Product Group 2-piece fixing ties with deep hole anchor, with disc, for round holes
    Type T50RDHA5.5x15-TP
    Weight/Unit 0.002767kg
    Bundle ⌀ 1-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 1mm
    Height (H) 20.15mm
    Length (L) 202.0mm
    Width (W) 4.6mm
    for Hole ⌀ (FH) 5.4 - 5.6 mm
    for Panel Thickness min - max 15
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026736600
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.55m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03135m³
    Packaging 1 - Weight (kg) 2.810597kg
    Packaging 1 - Width (m) 0.475m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.251791kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 132.036kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
