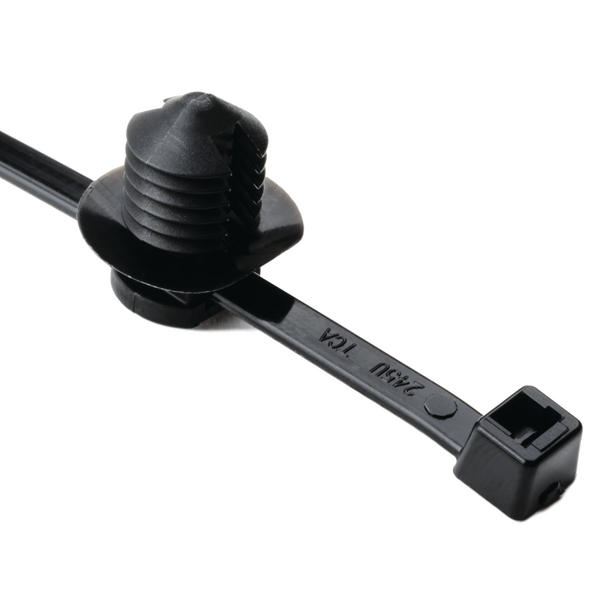

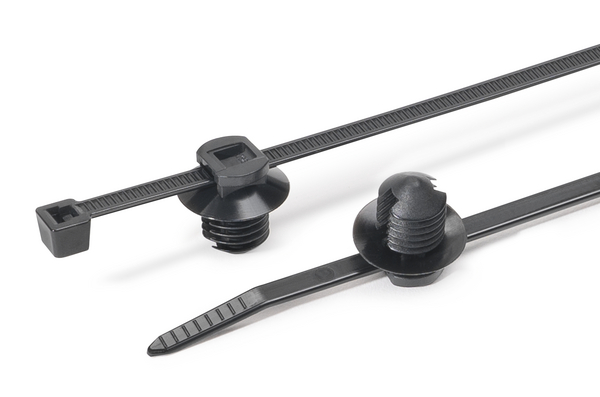

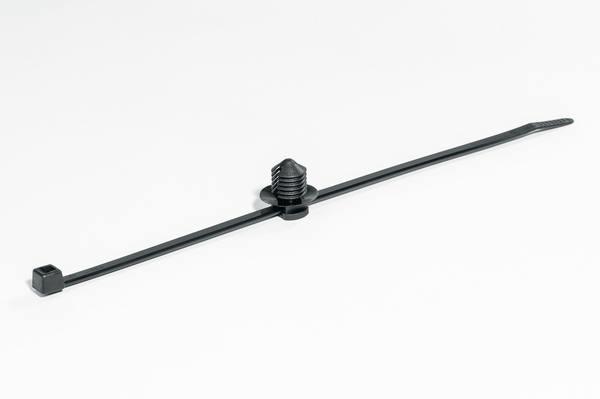

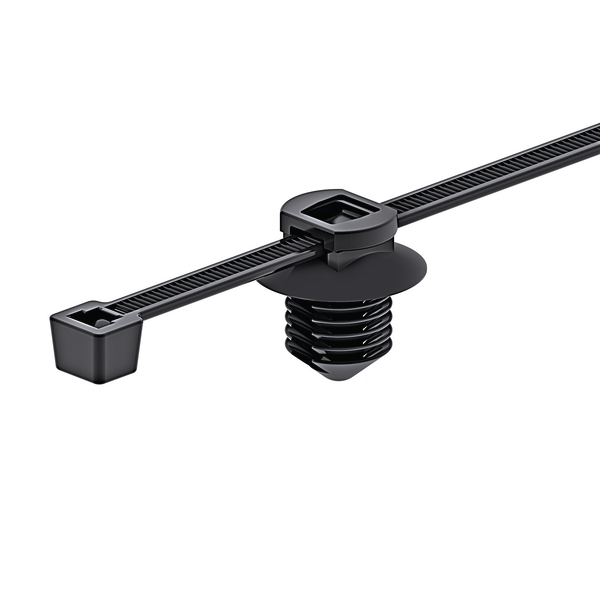

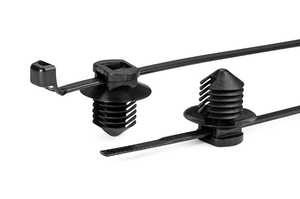

Fixing tie for hole (round), inside serrated, Ø4.0-45.0mm, black, 500pcs.
Art.-No. 111-85810 | T50RFT10-PA66HS-BK Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Anti rotation (Yes / No) NO
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir tree for round holes
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position none
Local order number T50RFT10-MC1-BK-D1
Material Polyamide 6.6, heat stabilised (PA66HS)
No. of sides for tie attachment 2
PART DESCRIPTION T50RFT10-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family Fir Tree Parts FT10
Product Group 2-Pieces Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie with Fir Tree and Disc 200x4.6 black
Tie Closure plastic pawl
Type T50RFT10
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 4.0-45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 18.0mm
Height (H) 1.2mm
Height (H2) 12.1mm
Length (L) 200.0mm
Length (L2) 12.0mm
Length of Fir Tree 12.1mm
Min.Tensile Strength 225N
Panel Thickness max. 0.8 - 5.0mm
Thickness (T) 1.2mm
Weight/Unit 0.002352kg
Width (W) 4.6mm
Width (W2) 9.0mm
for Hole ∅ (FH) 9.7 - 10.0 mm
for Panel Thickness min - max 0 - 0.2 "
for Panel Thickness min - max 0.8 - 5 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026207810
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.205135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.05081kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 117.6kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
