Fixing tie for edge, outside serrated, ∅1.0-45.0mm, black, 500pcs.
Art.-No. 156-00007 | T50ROSEC24-PA66HS/PA66HIRHS-BK Details

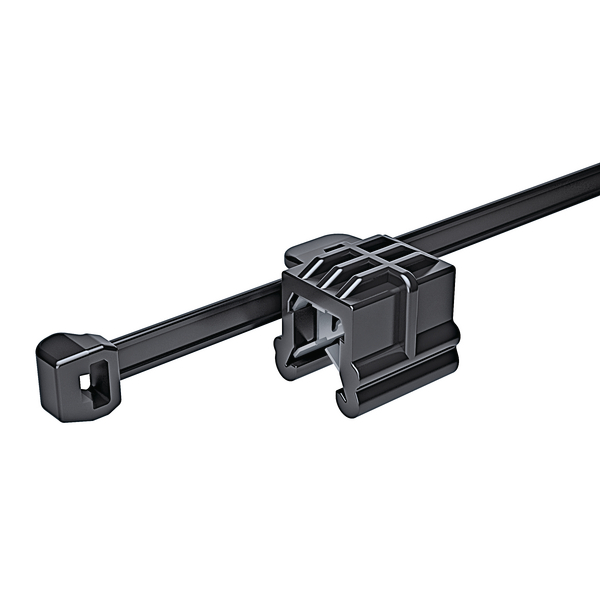

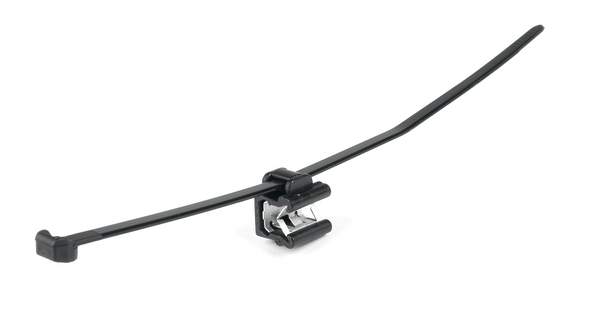

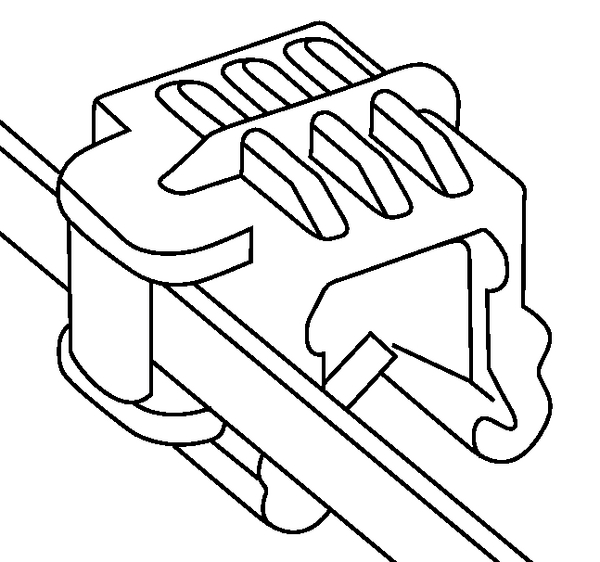

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • For minimum bundle diameters of 1 mm
  • For edges of 3 – 6 mm

Request your individual offer now

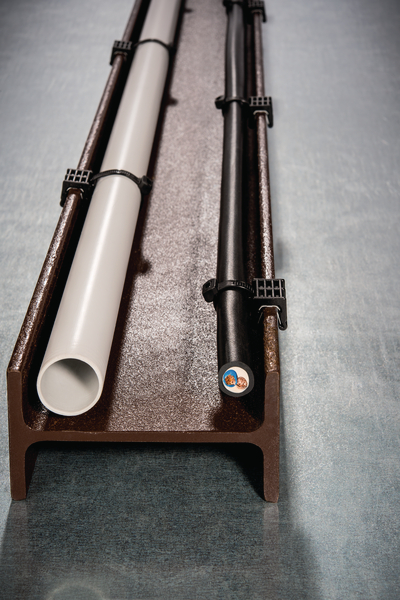

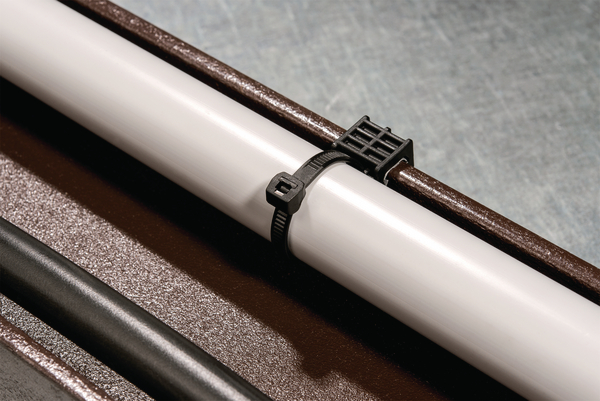

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
Anti rotation (Yes / No) YES
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

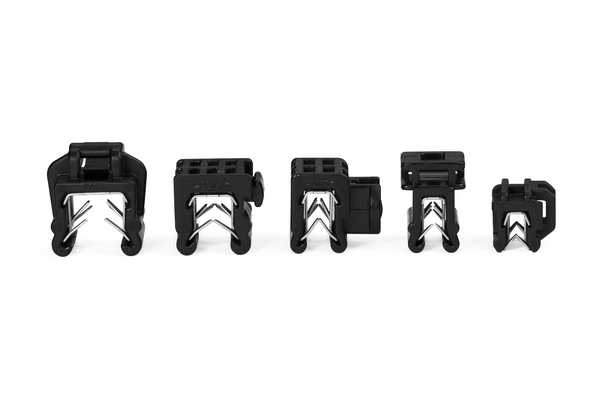

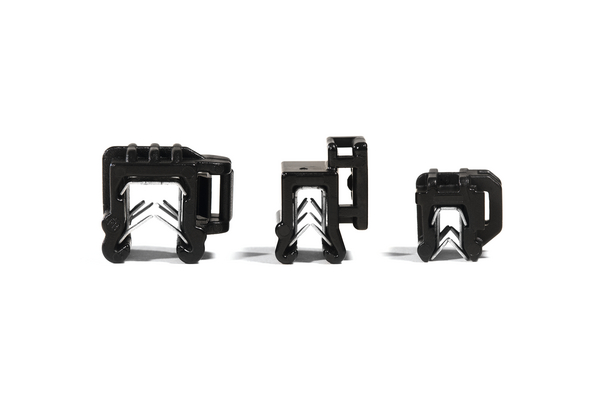

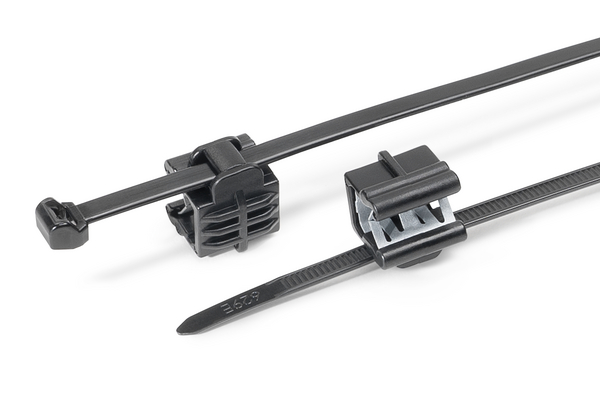

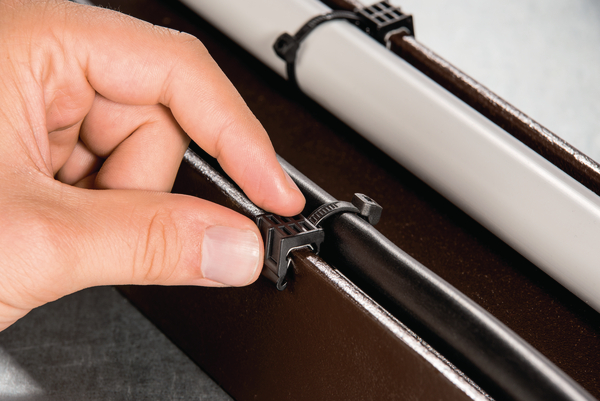

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method EdgeClip, sideway, assembled, 2 piece
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for narrow bundling
Local order number T50ROSEC24.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
No. of sides for tie attachment 2
PART DESCRIPTION T50ROSEC24-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family EdgeClip-Series, 3.0 - 6.0 mm, side fixing
Product Group 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie 200x4.6 for Edges 3-6 mm HS-black
Type T50ROSEC24
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 1.0-45.0mm
Bundle ∅ min. 1.0mm
Height (H) 1.3mm
Height (H2) 14.6mm
Length (L) 200.0mm
Length (L2) 14.8mm
Min.Tensile Strength 225N
Panel Thickness max. 3.0 - 6.0mm
Thickness (T) 1.3mm
Weight/Unit 0.003409kg
Width (W) 4.6mm
Width (W2) 17.3mm
for Panel Thickness min - max 3 - 6 mm
for Panel Thickness min - max 0.1 - 0.2 "
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026240015
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01185
Packaging 1 - Weight (kg) 1.748097kg
Packaging 1 - Width (m) 0.405m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.308582kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 156.732kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
