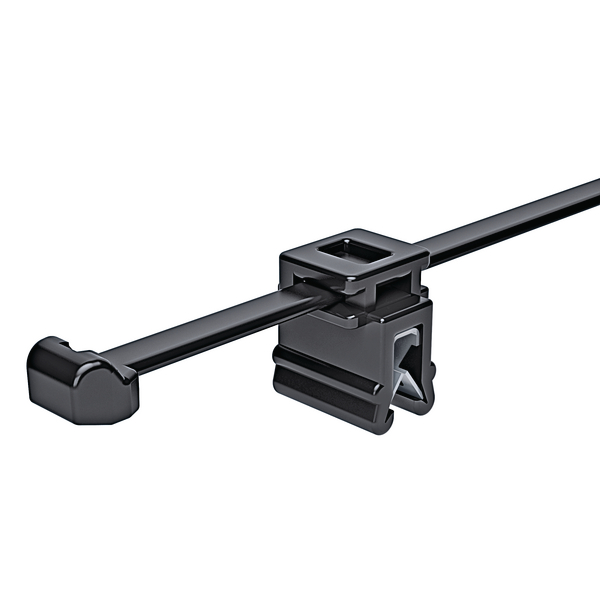

2-piece fixing ties for edges : T50ROSEC4A
2-piece fixing tie with edge clip 200x4.6 mm, UV-resistant, blackArticle number: 156-00570
Features
- Pre-assembled 2-piece fixing tie with EdgeClip
- Cable tie head can be moved after bundling
- EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
- For edges of 1 - 3 mm
Certifications & Approvals
Application
These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
More products in this product group
2-piece fixing ties for edges >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Brand Family | EdgeClip |
| Colour | Black (BK) |
| Colour (short) | BK |

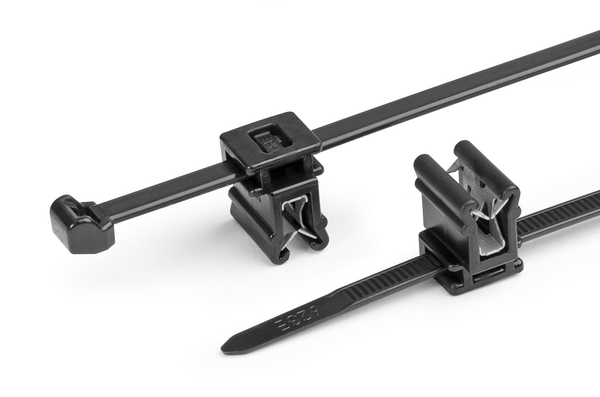

| Description | Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution. |
| Discontinued Globally | NO |
| EDP Text Short Germany | T50ROSEC4A-W |
| Fixation Method | EdgeClip, top, assembled, 2 piece |
| Free for general sale | YES |
| Identification Plate Position | none |
| Local Product Manager | John Brodie (john.brodie@hellermanntyton.co.uk) United Kingdom |
| Manufacturer Type | T50ROSEC4A-PA66W-BK (500) |
| Manufacturing PM | Torben Konetzny (Torben.Konetzny@HellermannTyton.de) Germany |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50ROSEC4A-PA66W-BK |
| Product family | Edge fixation products |
| Product Family | EdgeClip-Series, 1.0 - 3.0 mm, top fixing |
| Product Group | 2-piece fixing ties for edges |
| Product Subfamily | Edge Clip, cable tie, 2 pieces |
| Project Number (GPN) | NT760-99 |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-piece fixing tie with edge clip 200x4.6 mm, UV-resistant, black |
| Transparent (Yes/No) | No |
| Type | T50ROSEC4A-W_D1 |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 4.0mm |
| ECl@ss Key | 27140702 |
| for Panel Thickness min - max | 1 - 3 mm |
| Height (H) | 1.3mm |
| Height (H2) | 10.8mm |
| Length (L) | 200mm |
| Length (L2) | 14.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 3.0mm |
| Panel Thickness | 1.0mm |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 11.5mm |
| Approval MIL | false |
| Approval UL-Listed (Yes/No) | false |
| Approval VG | false |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Material | PA66W |
| Material Classification | Plastic (PL) |
| Material Surface | untreated |
| Operating Temperature - °C | -40 °C to +85 °C, (+105 °C, 500 h) |
| REACH compliant Regu. Art. 33 | YES |
| Specifications |
|
| UV-resistant acc. to ASTM D6779 (Yes/No) | No |
|
|
|
| Country of final Assembly | DE |
| Country of Origin | DE |
| Customs Number | 39269097 |
| EAN / GTIN | 4031026328874 |
| Global Customs Number | 392690 |
| Label Design | Bundling_Securing |
| Label Type | HT Standard 75x100 |
| Layers of Europallet | 3 |
| Order Unit | pcs. |
| Package dimensions calculated (LengthxWidthxHeight) | |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00186m³ |
| Packaging 1 - Weight (kg) | 1.486664kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.713312kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 173.592kg |
| Packaging 4 - Width (m) | 0.8m |
| Packaging Content SKU Unit | pcs. |
| PL0 Weight without Packaging | 0.0029kg |
| PL1 UNS | 030-00484 |
| PL1 Weight Packaging (Net) | 1.45kg |
| PL3 UNS | 031-00036 |
| PL3 Weight Packaging (Net) | 11.893312kg |
| PL4 UNS | 031-90193 |
| PL4 Weight Packaging (Net) | 152.592kg |
| Product Label Dimension 1 | L: 200 mm / |
| Status Packaging / Logistics Data | 2020-12-18 |
| Weight | 1.45kg |
| Distrelec order code | 30039119 |
| Competitor Match Codes | Ty-Grip, a-collection, Bizline, Elematic, Newlwc, Panduit, Richco, Sapi Selko, Sormat, Thomas&Betts, T&B, Wurth, WKK, Raymond, A.R., A. Raymond, Knigge, HS, HS Automotive, Tucker, ITW, TRW, TB, TB Automotive |
| Customer Order Codes (merged) | 14401560057000, 2879913, 30039119, 3374873, 542617, HLR15600570 |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| shown on website | Germany, France, Finland, Spain, Denmark, Sweden, Poland, Norway, Netherlands, Italy, Austria, Turkey Rep., Singapore (English), Automotive (German), com Internet, China (English), Publication Master, China (Mandarin), Great Britain, Automotive (English), HTData (English), CEE (English) |
