24/10/2025

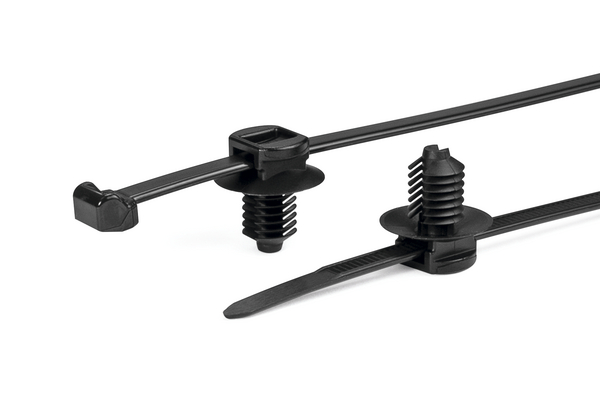

Fixing tie for hole (round), outside serrated, ⌀4.0-45.0mm, black, 500pcs.
Art.-No. 150-31099 | T50ROSFT6LG-PA66HS/PA66HIRHS-BK |

Copied
Fixing tie for round holes with a hole size of 6.5 up to 7.0 mm and for a panel thickness of 0.8 mm - 6.0 mm.
T30RFT6LG

    • Pre-assembled 2-piece fixing tie with fir tree foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables.
    The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
    Fixation Method Fir Tree
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Local order number T50ROSFT6LG-MC5-BK-D1
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50ROSFT6LG-PA66HS/PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in pcs.
    Product Family Fir tree parts FT6
    Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
    Releasable Closure (Yes/No) No
    Short Description 2-Piece Fixing Tie with Fir Tree and Disc 200x4.6 black
    Tie Closure plastic pawl
    Type T50ROSFT6LG
    Variant Outside Serrated
    Weight/Unit 0.001856kg
    Bundle ⌀ 4.0-45.0mm
    Bundle ⌀ max. 45.0mm
    Bundle ⌀ min. 4.0mm
    Disc ⌀ 16.0mm
    Height (H) 1.3mm
    Height (H2) 11.1mm
    Length (L) 200.0mm
    Length (L2) 11.6mm
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    Width (W2) 9.0mm
    for Hole ⌀ (FH) 6.5 - 7.0 mm
    for Panel Thickness min - max 0.8 - 6 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin SG
    Customs Number 39269097
    GTIN-13 / EAN 4031026212715
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 0.968kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.218m
    Packaging 3 - Length (m) 0.599m
    Packaging 3 - Qty 2500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0522m³
    Packaging 3 - Weight (kg) 5.7kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 50000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 135.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
