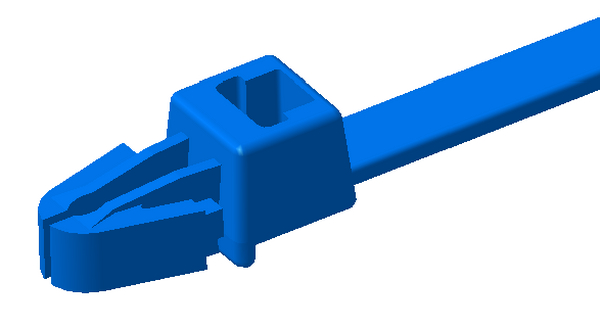

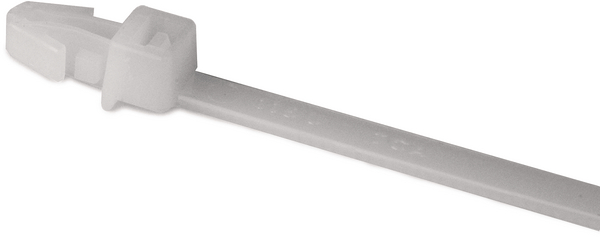

Fixing tie for hole (round), inside serrated, ⌀1.6-44.5mm, natural, 100pcs.
Art.-No. 111-85789
| T50RSF(U)-PA66-NA
|
Copied
- Easy to assemble without the need for a tool
- Fixing tie with arrowhead without wings
- Arrowhead simply locks into place
- Cable tie head always situated in defined position
Request quote
More products in this product group:
| Application | The arrowhead design is usefull in areas with limited space. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Local order number | T50RSFA.NN3P |
| Material | Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50RSF(U)-PA66-NA |
| Package Content | 100pcs. |
| Package Content packed in | Pack |
| Product Family | without wings and disc, for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RSF(U) |
| UV-Stabilised | No |
| Variant | Inside Serrated |
| Weight/Unit | 0.0015kg |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026107509 |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 0.15kg |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.235kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 120.82kg |
| Packaging 4 - Width (m) | 0.8m |
