22/06/2024

Fixing tie for cable bundles, inside serrated, Ø2.0-47.0mm, black, 1500pcs.
Art.-No. 156-01134 | T50RSINGLECOUPLER-PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with coupler
  • Cable tie head can be moved after bundling
  • Easy addition of cables after assembly
  • For parallel routing of bundles that can be twisted 90° even after installation

Request your individual offer now

Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour Black (BK)

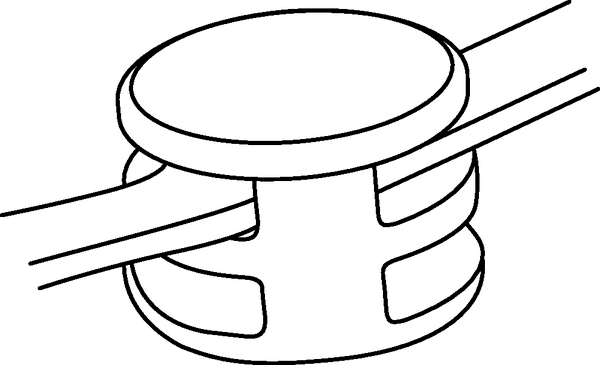

Description The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for multiple routing
Local order number 156-01134
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50RSINGLECOUPLER-PA66HIRHS-BK
Pack Cont. 1500pcs.
Package Content packed in Box
Product Family twistable up to 90°
Product Group 2-piece fixing ties for parallel separation
Short Description 2-Piece Fixing Ties for parallel separation 202x4.6 mm, high impact modified, heat stabilised, black
Tie Closure plastic pawl
Type T50RSINGLECOUPLER
Variant Inside Serrated
Bundle Diameter max (metric) 47.0mm
Bundle ∅ 2.0-47.0mm
Bundle ∅ min. 2.0mm
Length (L) 202.0mm
Min.Tensile Strength 225N
Weight/Unit 0.001954kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026466200
Packaging 1 - Height (m) 0.083m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00836
Packaging 1 - Weight (kg) 0.977001kg
Packaging 1 - Width (m) 0.255m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 1500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.024
Packaging 3 - Weight (kg) 3.351003kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 155.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
