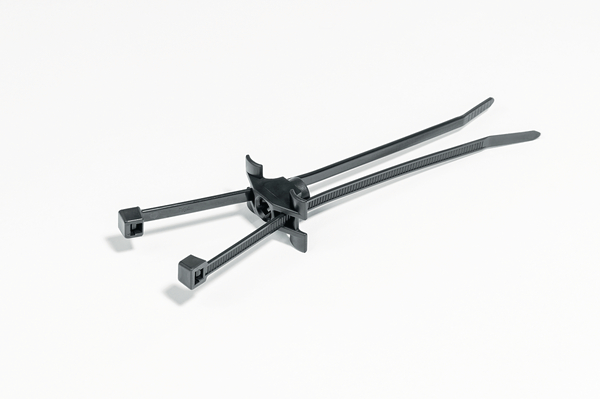

Fixing tie for stud, inside serrated, Ø2.0-35.0mm, black, 500pcs.
Art.-No. 150-56193 | T50SDSBS5-PA66HS/PA66HIRHS-BK Details

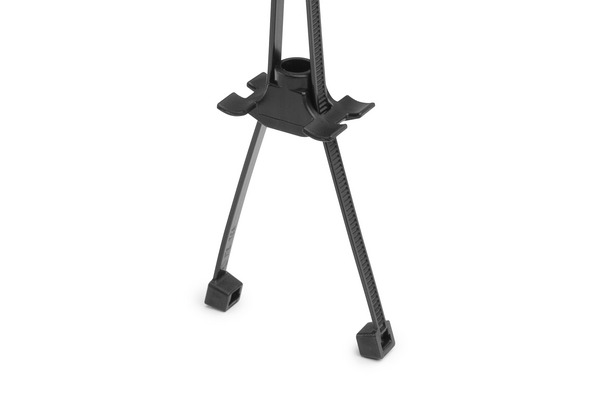

  • Pre-assembled 2-piece fixing tie with stud retainer
  • For parallel routing of cables, hoses or harnesses
  • Cable tie head can be moved after bundling
  • Easy to install without the need for a tool
  • For 5 mm studs or 5 mm ISO threaded studs
Show more

Request your individual offer now

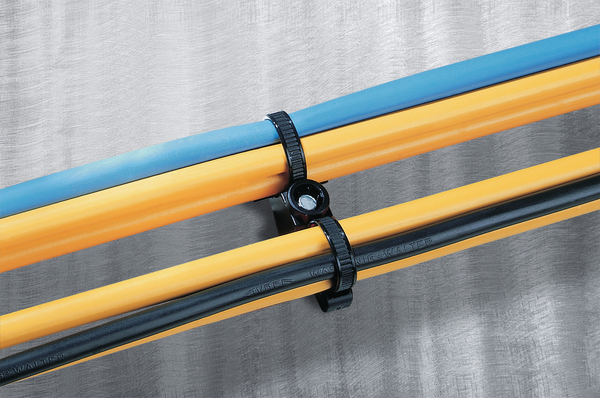

Application Many applications require cables to be run parallel to each other but separated to avoid abrasion, the double mounting base, when used with two cable ties allow this to be achieved simply and quickly. Widely used for securing cables, pipes and hoses in the automotive and truck building industries, the mounting base is simply pushed onto a 5mm diameter weld stud or bolt.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for multiple routing
Local order number 150-56193.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SDSBS5-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family 2-piece fixing ties for weld studs, for parallel routing
Product Group 2-piece fixing ties for weld studs, for parallel routing
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie for Weld Studs and parallel routing 150x4.6 black
Type T50SDSBS5

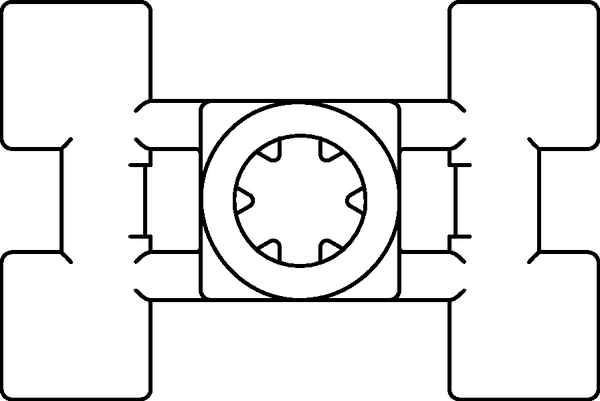

Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 2.0-35.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 15mm

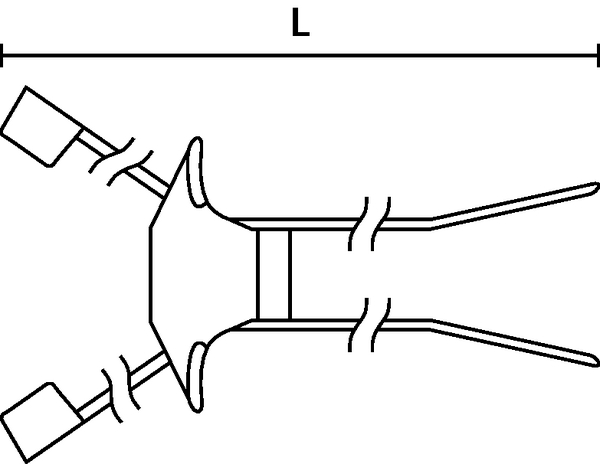

Length (L) 150mm
Length (L2) 20mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Thickness (T) 1.2mm
Weight/Unit 0.003742kg
Width (W) 4.6mm
Width (W2) 30.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026193755
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0218
Packaging 1 - Weight (kg) 1.914597kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.478388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 122.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
