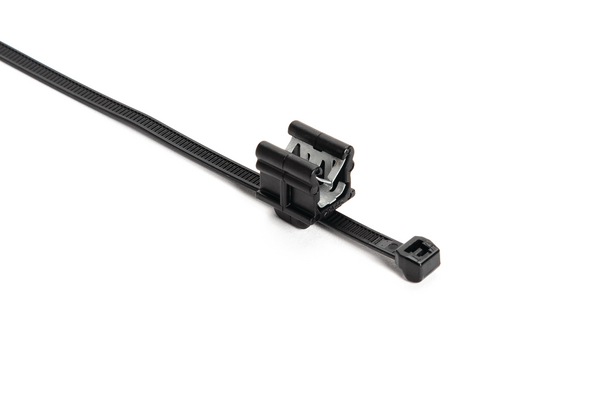

Fixing tie for edge, outside serrated, Ø1.0-35.0mm, black, 500pcs.
Art.-No. 156-04601 | T50SOSEC19-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • For minimum bundle diameters of 1 mm
  • For edges of 3 – 6 mm

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel buidling and electrical industry.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

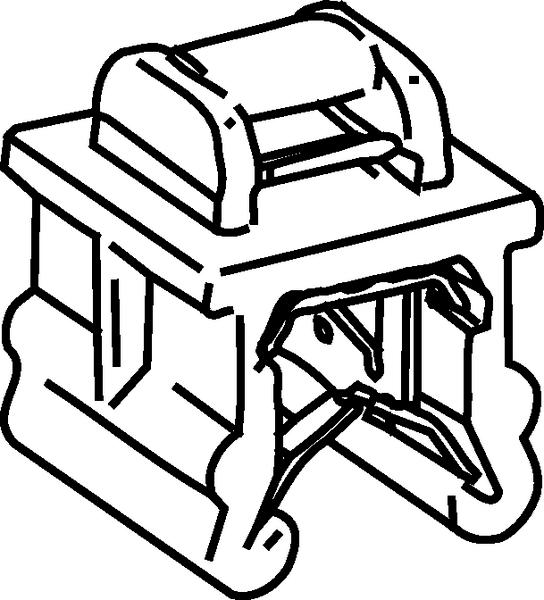

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 3.0 to 6.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method Edge Clip
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for narrow bundling
Local order number T50SOSEC19.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION T50SOSEC19-PA66HS/PA66HIRHS-BK
Product Family EdgeClip-Series, 3.0 - 6.0 mm, top fixing
Product Group 2-Piece Fixing Ties for Edges, 3,0 - 6,0 mm
Short Description 2-Piece fixing tie 150x4.6 mm, for edges 3-6 mm, PA66HS/PA66HIRHS, black
Variant Outside Serrated
Bundle Diameter max (Metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
for Panel Thickness min - max 3 - 6 mm
for Panel Thickness min - max 0.1 - 0.2 "
Height (H) 1.3mm
Height (H2) 17.8mm
Length (L) 150.0mm
Length (L2) 14.8mm
Min.Tensile Strength 225N
Panel Thickness max. 3.0 - 6.0mm
Weight/Unit 0.003068kg
Width (W) 4.6mm
Width (W2) 14.0mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5975-12-409-2640
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026230061
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00927
Packaging 1 - Weight (kg) 1.563135kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.32508kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 180.888kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
