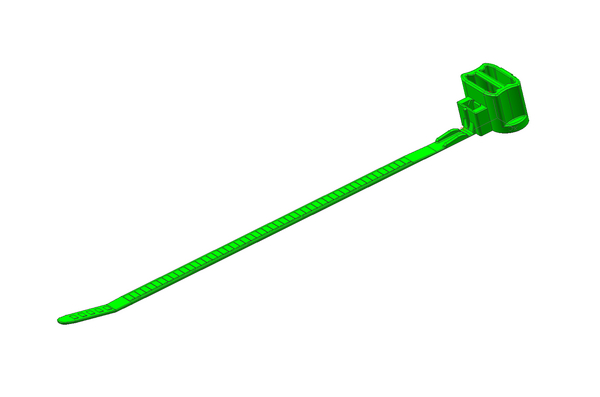

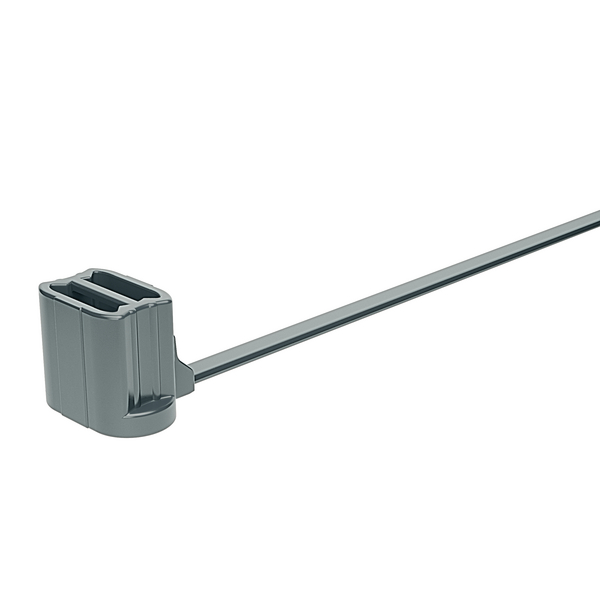

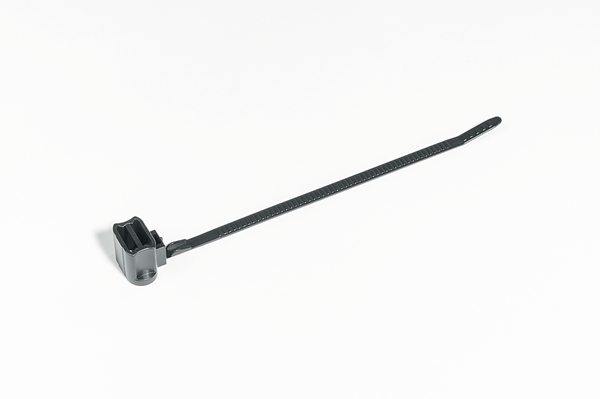

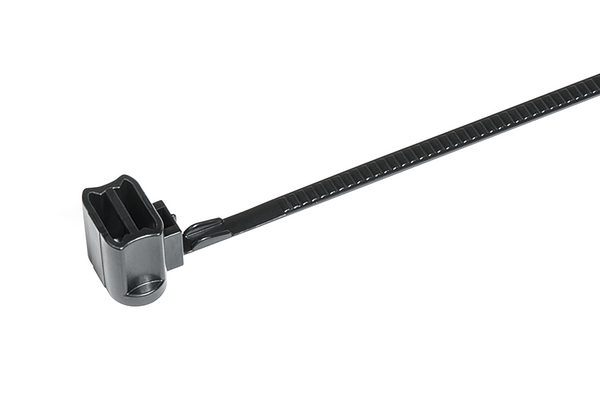

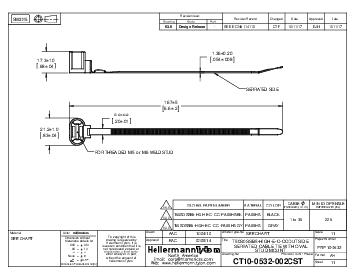

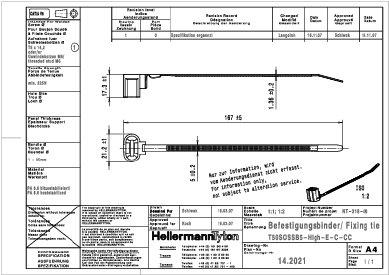

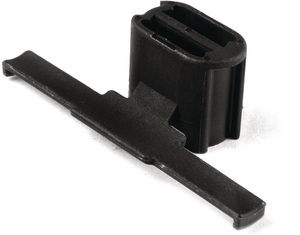

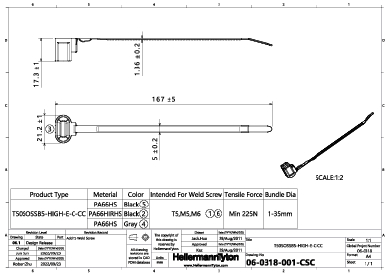

1-Piece Fixing Ties for Weld, moveable : T50SOSSB5-High-E-C-CC
Article number: 157-00037
Features
- One-piece fixing ties
- High specification materials
- Superior design
- Suitable for complex applications
Certifications & Approvals
Application
Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
More products in this product group
1-Piece Fixing Ties for Weld, moveable >| Anti rotation (Yes / No) | YES |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSSB5-High-E-C-CC-PA66HS-BK |
| Product Group | 1-Piece Fixing Ties for Weld, moveable |
| Releasable Closure (Yes/No) | No |

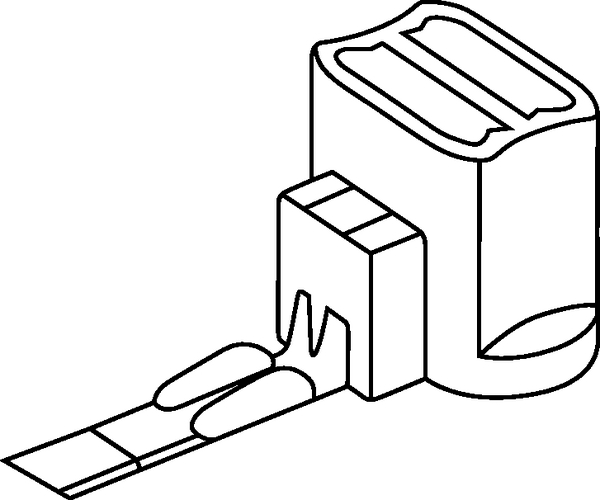

| Tie Closure | plastic pawl |
| Type | T50SOSSB5-High-E-C-CC-HS-ND1 |
| Variant | Outside Serrated |
|
|
|
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |

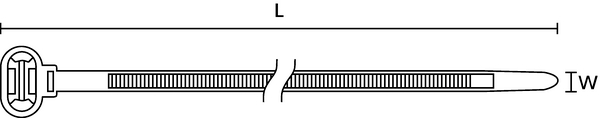

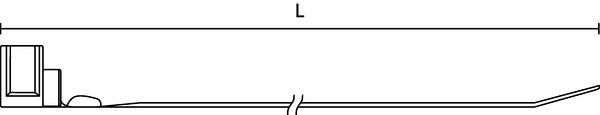

| Length (L) | 167.0mm |
| Max Stud Length | 14.2mm |
| Min Stud Length | 17.3mm |
| Min.Tensile Strength | 225N |
| Stud ∅ | 5.0 mm, 6.0 mm |
| Width (W) | 5.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026286785 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 3.058597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.995791kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 140.964kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 3.015kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
