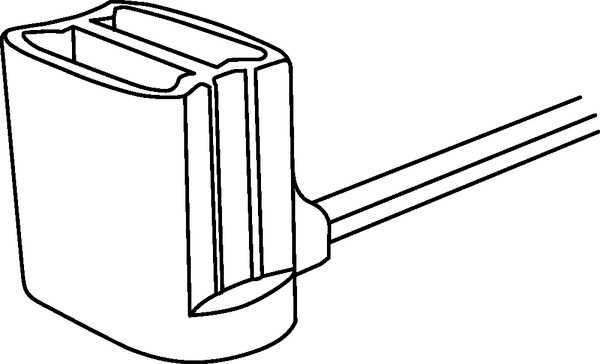

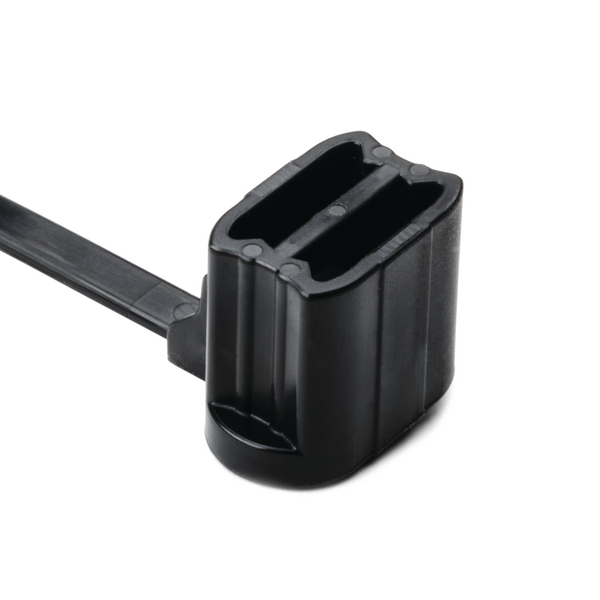

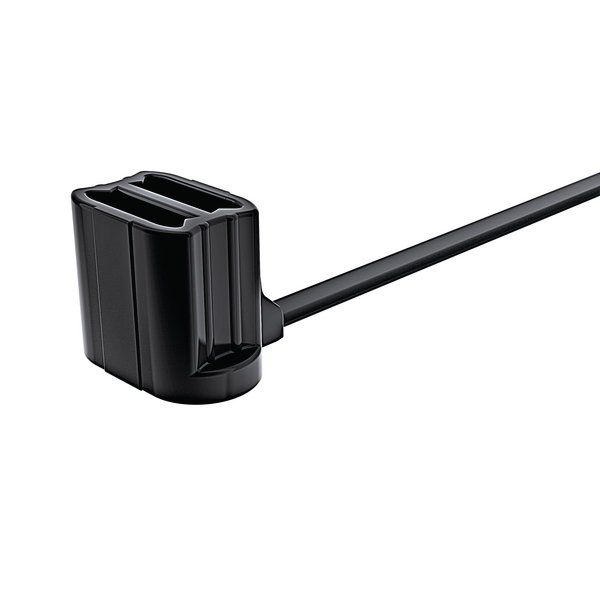

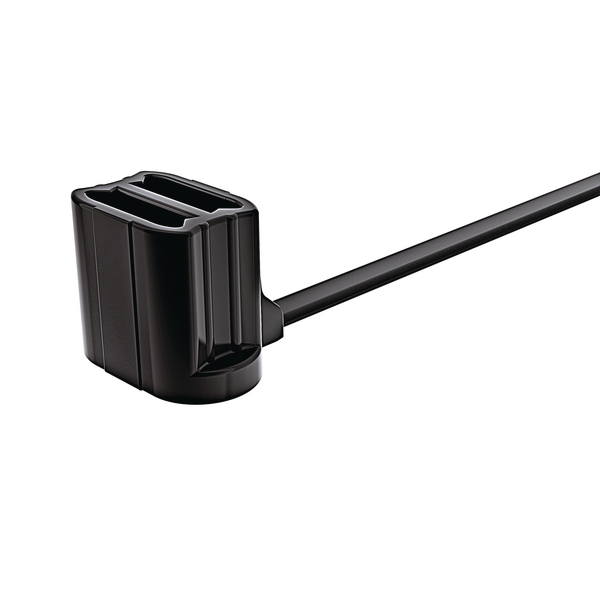

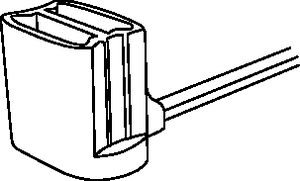

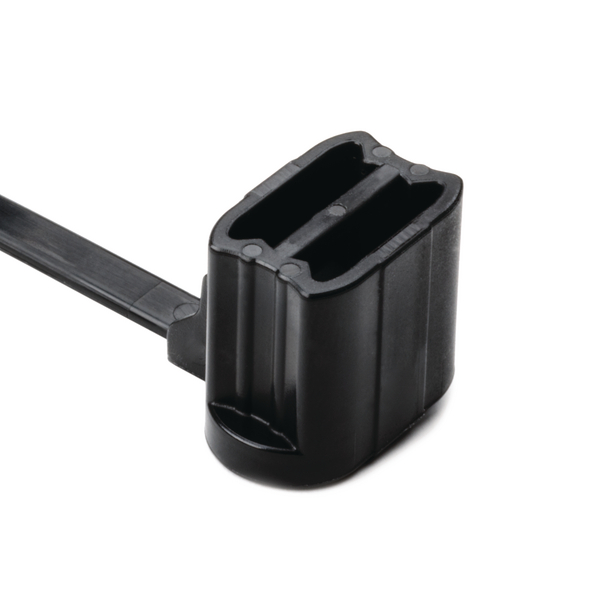

Fixing tie for stud, outside serrated, Ø1.0-35.0mm, black, 500pcs.
Art.-No. 155-05400 | T50SOSSB5-HIGH-E-PA66HS-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Request your individual offer now

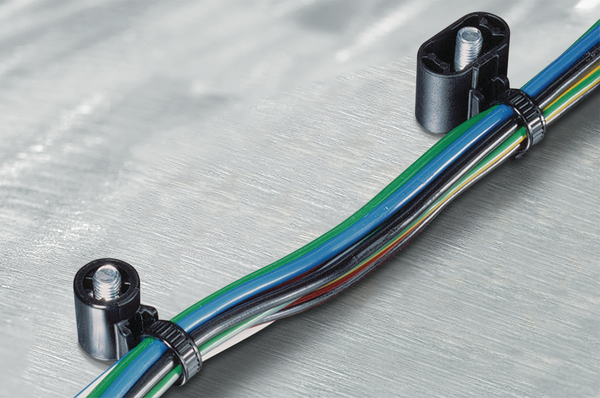

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Fixation Method Stud Mount
Identification Plate Position none
Local order number 155-05400.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 500pcs.

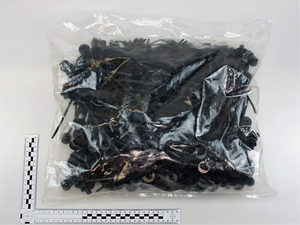

Package Content packed in Bag
PART DESCRIPTION T50SOSSB5-HIGH-E-PA66HS-BK
Product Group 1-Piece Fixing Ties for Weld , moveable
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Tie for Weld , moveable, PA66HS, 160x4.6 black
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (Metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Fixing Hole Shape Oval

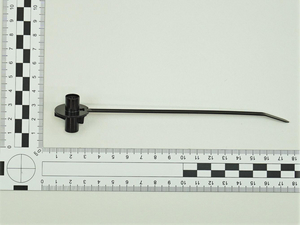

Length (L) 160mm
Max Stud Length 16.0mm
Max Stud Length (imperial) 0.63"
Min Stud Length 11.0mm
Min.Tensile Strength 170N
Stud ∅ 5.0 mm
Stud ∅ (imperial) 0.2"
Thickness (T) 1.35mm
Weight/Unit 0.002886kg
Width (W) 4.6mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026231532
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 1.510538kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 10.024228kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 141.324kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
