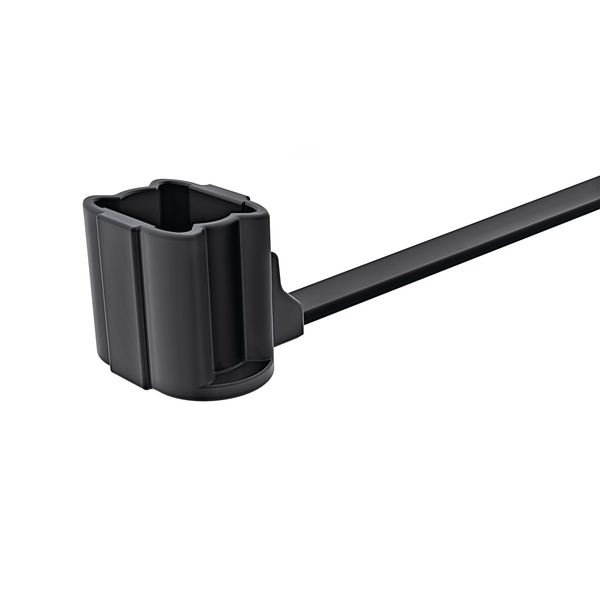

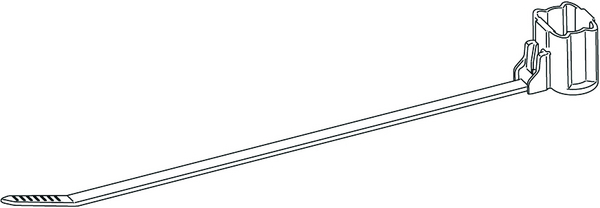

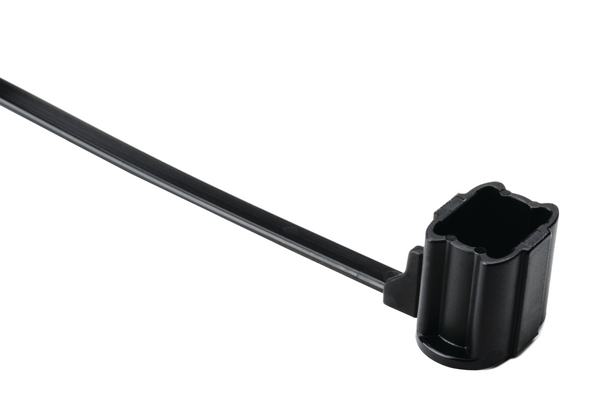

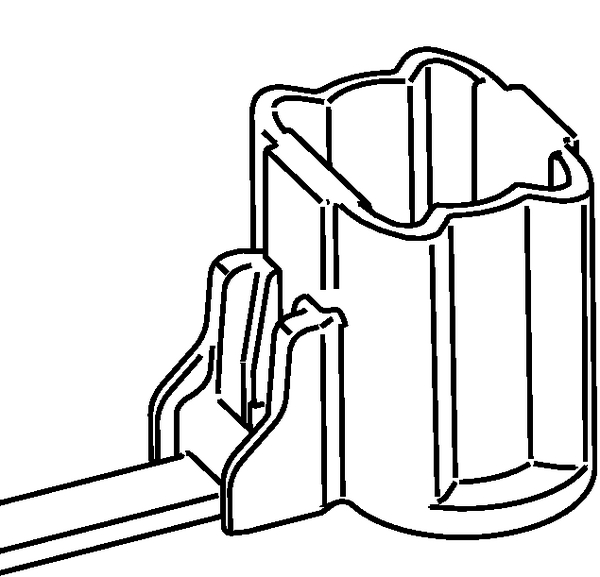

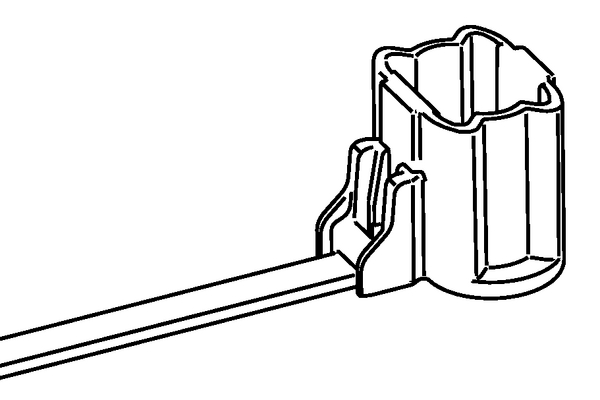

1-Piece Fixing Ties for Weld , moveable : T50SOSSB6HE
1-Piece Fixing Tie for Weld , moveable, PA66HS, 160x4.6 blackArticle number: 155-46302
Features
- Cable tie head always situated in defined position
- Easy to install without the need for a tool
- Provides a 5 – 6 mm lateral adjustment possibility
Certifications & Approvals
Application

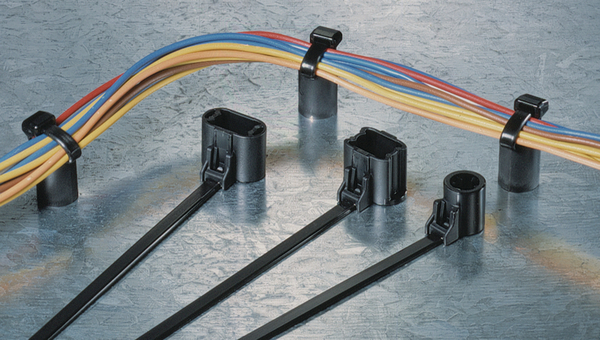

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm/8mm weld studs or 5mm/8mm ISO bolts are used and cables need to be bundled and secured. (WS series,T120RSM, DCT9 and DCT 11 are for 1/4" bolts)
More products in this product group
1-Piece Fixing Ties for Weld , moveable >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSSB6HE-PA66HS-BK |
| Product Group | 1-Piece Fixing Ties for Weld , moveable |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie for Weld , moveable, PA66HS, 160x4.6 black |
| Tie Closure | plastic pawl |
| Type | 155-46302.HB6P |
| Variant | Outside Serrated |
|
|
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Height (H2) | 16.0mm |
| Length (L) | 160.0mm |
| Min Stud Length | 16.0mm |
| Min.Tensile Strength | 170N |
| Stud ∅ | 6.0 mm |
| Stud ∅ (imperial) | 0.24" |
| Thickness (T) | 1.35mm |
| Width (W) | 4.7mm |
| Width (W2) | 20.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026219929 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 1.330538kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.803228kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 126.672kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.263kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
