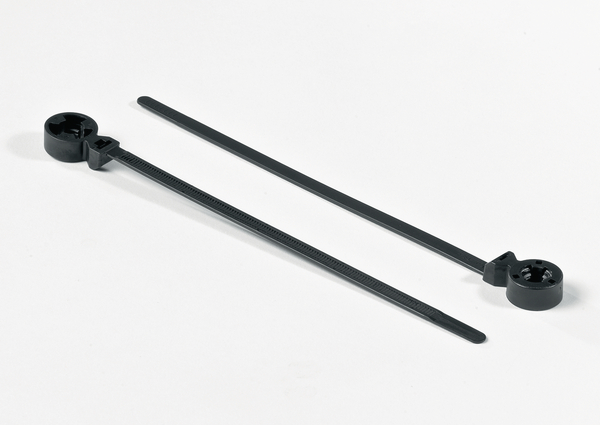

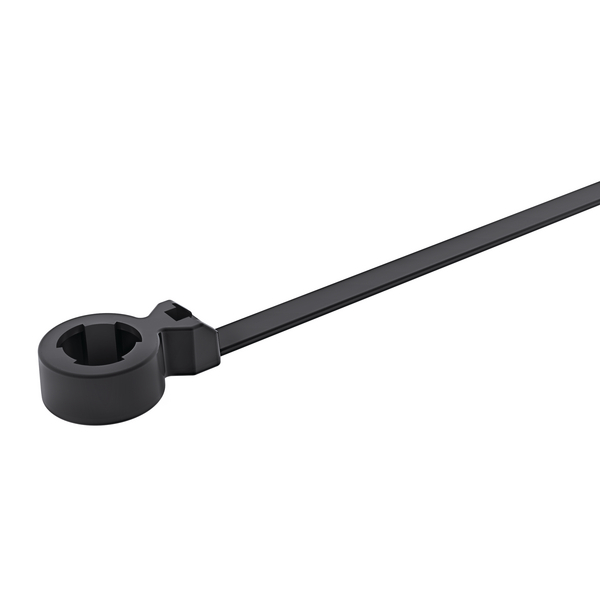

Fixing tie for stud, outside serrated, Ø3.0-30.0mm, black, 100pcs.
Art.-No. 157-00040 | T50SOSSBD-M10-PA66HSUV-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO7, EVO7SP, EVO7iSP, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Cable Tie Polyamide 6.6, heat and UV-resistant (PA66HSW)
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Local order number T50SOSSBD-M10-HSW
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
Mounting Screw Type M10 Screw

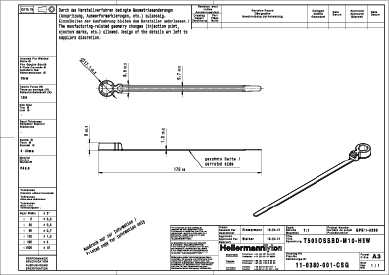

PART DESCRIPTION T50SOSSBD-M10-PA66HSUV-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family T50SOSSBD for cable routing alongside and below the stud
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Short Description 1-Piece fixing tie 175x5.7 mm, for weld studs, PA66HSW, black
Tie Closure plastic pawl
Type T50SOSSBD-M10
Variant Outside Serrated
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 3.0-30.0mm
Bundle ∅ min. 3.0mm

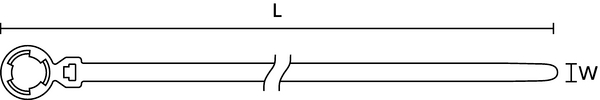

Length (L) 175.0mm
Min.Tensile Strength 150N
Stud ∅ M10
Thickness (T) 1.3mm
Weight/Unit 0.0029kg
Width (W) 5.7mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387950892
Packaging 1 - Height (m) 0.043m
Packaging 1 - Length (m) 0.176m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00082
Packaging 1 - Weight (kg) 0.310001kg
Packaging 1 - Width (m) 0.108m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0494
Packaging 3 - Weight (kg) 9.74003kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 137.88kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
