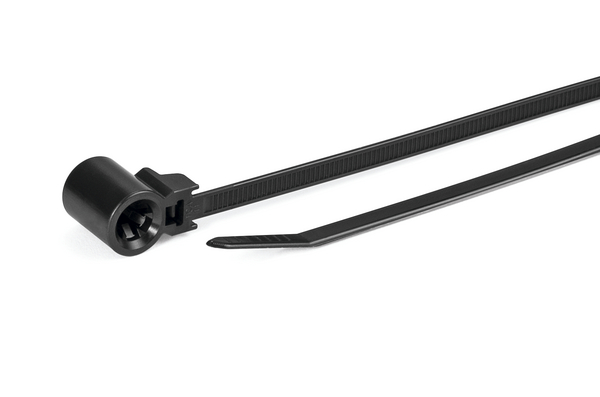

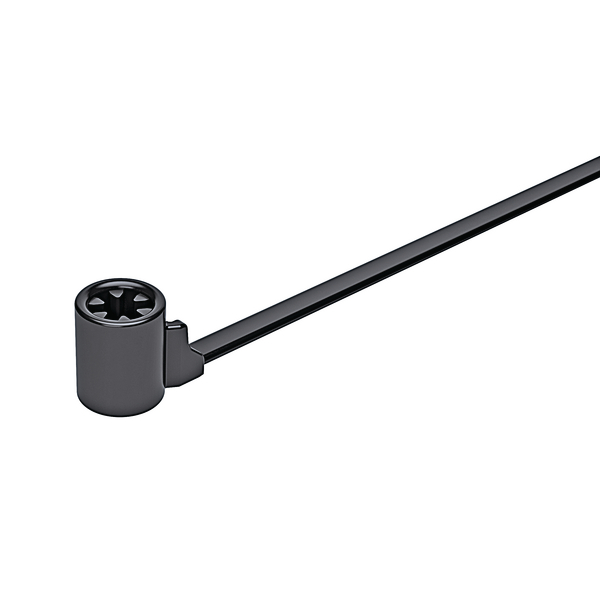

Fixing tie for stud, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 157-00252 | T50SOSSBS5E-2-PA66HS-BK Details

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Key product features products for automatic tools
Local order number T50SOSSBS5E-2_PA66HS_BK
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SOSSBS5E-2-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family For cable routing alongside the stud
Product Group 1-piece fixing ties for weld studs
Releasable Closure (Yes/No) No
Short Description One-piece fixing tie 160x4.6 black
Tie Closure plastic pawl
Type T50SOSSBS5E-2
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Height (H) 1.35mm
Height (H2) 15mm
Length (L) 161.0mm
Max Stud Length 14.0mm
Min Stud Length 8.0mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Stud ∅ (imperial) 0.2"
Thickness (T) 1.35mm
Weight/Unit 0.002206kg
Width (W) 4.7mm
Width (W2) 12.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Nato number 5975-12-403-8965
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026540467
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01628
Packaging 1 - Weight (kg) 1.146kg
Packaging 1 - Width (m) 0.465m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.988kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 140.856kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
