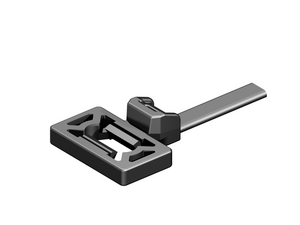

1-piece fixing ties for weld studs, lateral adjustment : T50SOSWSP5E-2
1-Piece Fixing Tie 162.6x4.6 mm, for Weld Studs, heat stabilised, blackArticle number: 133-01553
Features
- Cable tie head always situated in defined position
- Easy to install without the need for a tool
- Provides 5 – 6 mm lateral adjustment
- Very low profile, stackable design
- For parallel routing of several bundles
Certifications & Approvals
Application
Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications, e. g. where weld studs or ISO bolts are used and cables need to be bundled and secured. (WS series, DCT9 & DCT 11 are for 1/4" bolts)
More products in this product group
1-piece fixing ties for weld studs, lateral adjustment >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSWSP5E-2-PA66HS-BK |
| Product Family | T50SOSWSP5E-2 for 5 mm studs, retainer height 3.5 mm |
| Product Group | 1-piece fixing ties for weld studs, lateral adjustment |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie 162.6x4.6 mm, for Weld Studs, heat stabilised, black |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.0mm |
| Height (H) | 1.3mm |
| Length (L) | 162.6mm |
| Min.Tensile Strength | 225N |
| Stud ∅ | 5.0 mm, 6.0 mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026501543 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00525m³ |
| Packaging 1 - Weight (kg) | 0.819001kg |
| Packaging 1 - Width (m) | 0.25m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 9.15101kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 130.812kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.819kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
