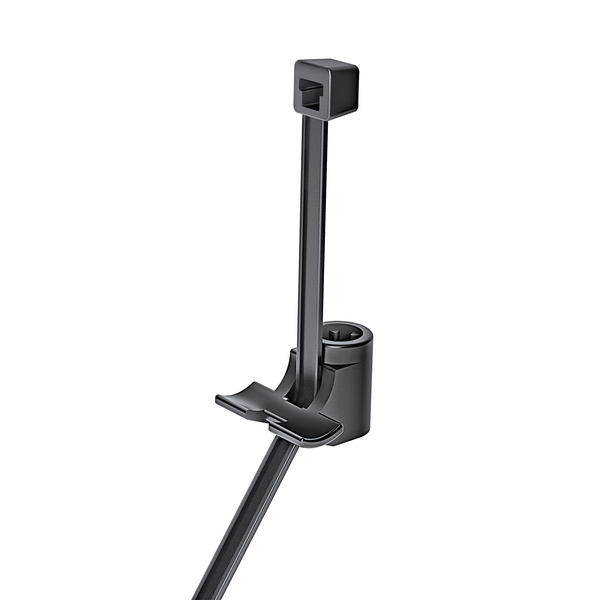

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 300pcs.
Art.-No. 150-21293 | T50SSBS5-PA66HS-BK Details

  • Pre-assembled with cable tie and weld stud mounting base
  • Quick and easy installation
  • Head rotates into perfect position for installation
  • 'Soft-push' design for tool-free installation
  • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
  • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
  • SB5 allow lateral tolerance for fixing point
Show more

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Weld Stud Fixing
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50SSBS5-PA66HS-BK
Pack Cont. 300pcs.
Package Content packed in pcs.

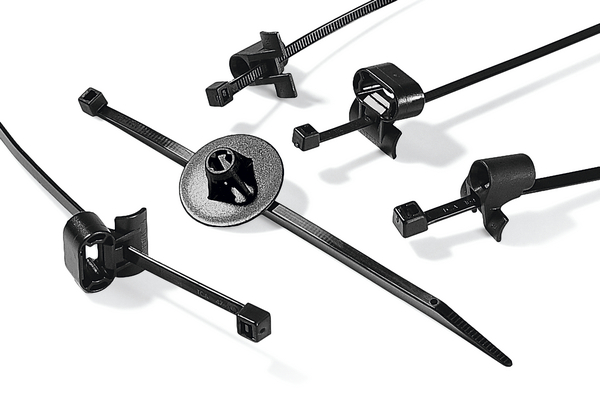

Product Group 2-Piece Fixing Ties for Weld Studs
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie for Weld Studs 150x4.6 black
Tie Closure plastic pawl
Type T50SSBS5
Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 2.0-35.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 15mm

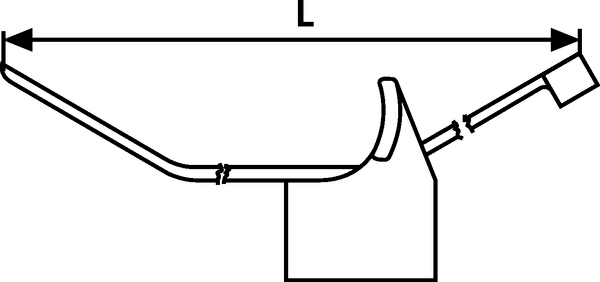

Length (L) 150mm
Length (L2) 20mm
Min Stud Length 14.2mm
Min Stud Length (imperial) 0.56"
Min.Tensile Strength 225N

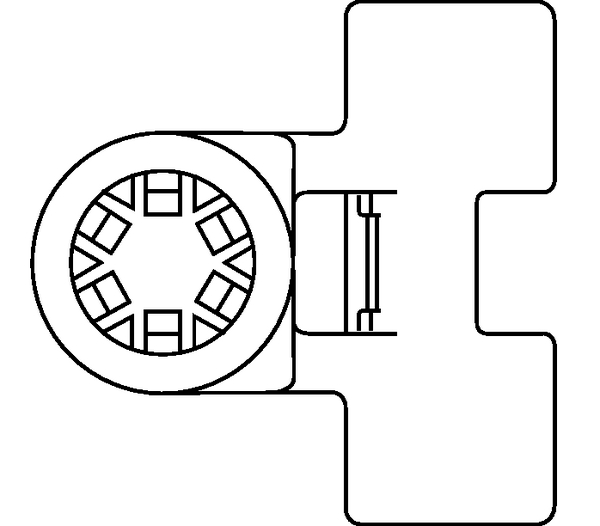

Stud ∅ 5.0 mm
Stud ∅ (imperial) 0.197"
Thickness (T) 1.2mm
Weight/Unit 0.0014kg
Width (W) 4.6mm
Width (W2) 20.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Nato number 5975-12-377-6862
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026119762
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 300
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.74kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 2400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 6.67kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 154.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
