16/06/2024
For new projects please use part number 156-03040!

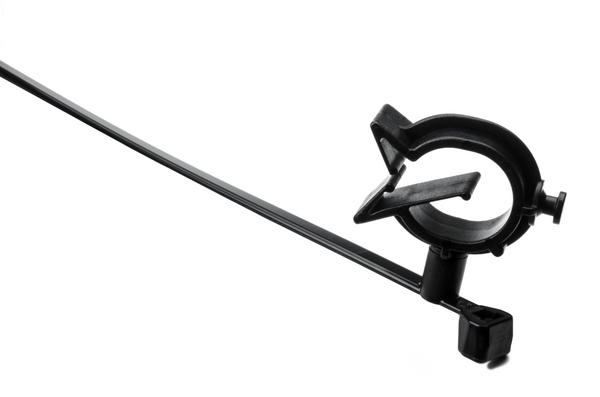

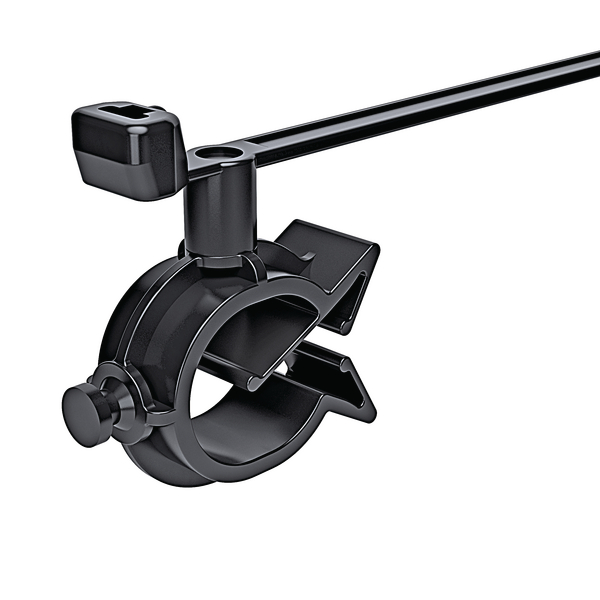

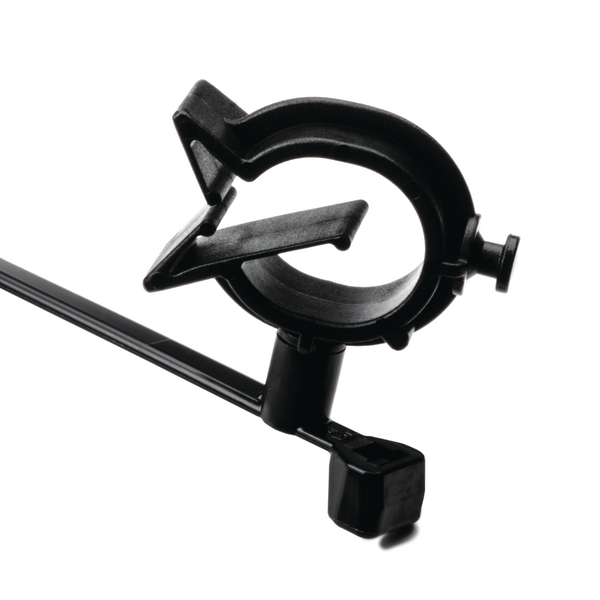

Fixing tie with pipe/tube holder, inside serrated, Ø2.0-35.0mm, black, 500pcs.
Art.-No. 156-00134 | T50SVCOC10-14-PA66HS/PA66HIRHS-BK Details

  • simply clip onto a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the Automotive Industry
Show more

Request your individual offer now

Application These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Internet Customer Notice For new projects please use part number 156-03040!
Key product features rotatable, for multiple routing, removable
Local order number T50SVC1014.HB6P
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SVCOC10-14-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Group 2-Piece Fixing Ties with Pipe Clip, twistable 360°
Short Description 2-Piece fixing tie 155x4.7 mm, with pipe clip, PA66HS/PA66HIRHS, black
Tie Closure plastic pawl
Type T50SVCOC10-14
Attach to Diameter 0.4 ″ - 0.55 ″
Attach to Ø 10.0 - 14.0
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 2.0-35.0mm
Bundle ∅ min. 2.0mm
Length (L) 155mm
Min.Tensile Strength 222N
Thickness (T) 1.35mm
Weight/Unit 0.00271kg
Width (W) 4.7mm
∅ D max. (imperial) 0.55"
∅ D min. (imperial) 0.4"
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026263465
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 1.398597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.211582kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 131.568kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
