For new projects please use part number 156-03041!

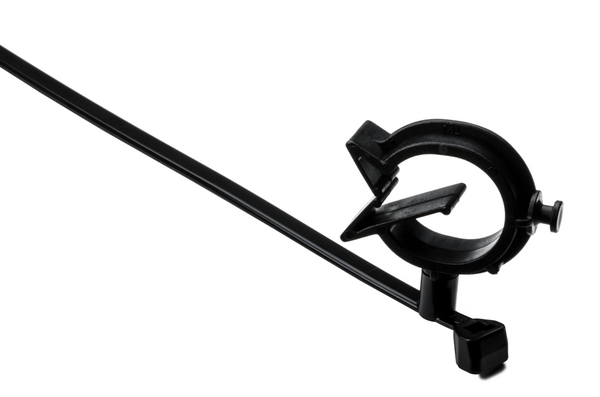

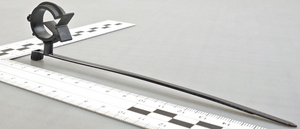

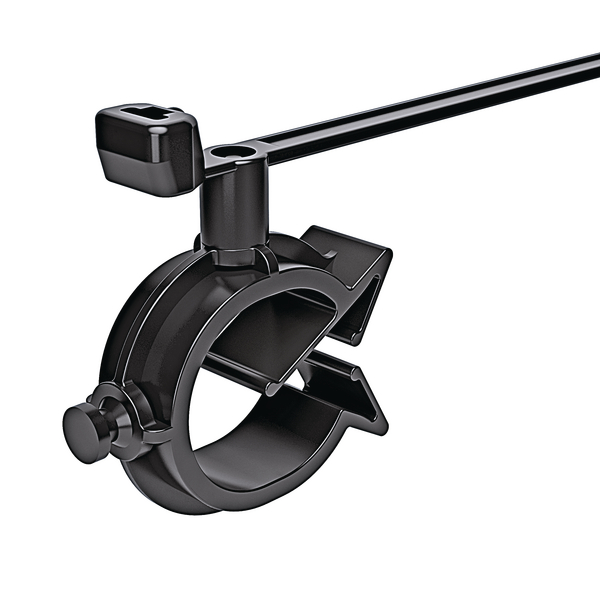

Fixing tie with pipe/tube holder, inside serrated, Ø2.0-35.0mm, black, 500pcs.
Art.-No. 156-00135
| T50SVCOC15-18-PA66HS/PA66HIRHS-BK
|
Details
- simply clip onto a wire or hose
- Fixing clip offers full 360° rotation
- Routed cable can move in any direction in relation to the fixing point
- Inside serrated cable tie
- Ideally used in the Automotive Industry
Request your individual offer now
Request quote
More products in this product group:
| Application | These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness. |
| Application Tool | ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Internet Customer Notice | For new projects please use part number 156-03041! |
| Key product features | lockable, rotatable |
| Local order number | T50SVC1518.HB6P |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |

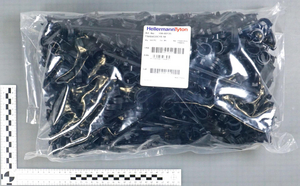

| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| PART DESCRIPTION | T50SVCOC15-18-PA66HS/PA66HIRHS-BK |
| Product Group | 2-Piece Fixing Ties with Pipe Clip, twistable 360° |
| Short Description | 2-Piece fixing tie 155x4.7 mm, with pipe clip, PA66HS, black |
| Tie Closure | plastic pawl |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026263472 |
| Packaging 1 - Height (m) | 0.135m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01527m³ |
| Packaging 1 - Weight (kg) | 1.642597kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.675582kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 149.136kg |
| Packaging 4 - Width (m) | 0.8m |
