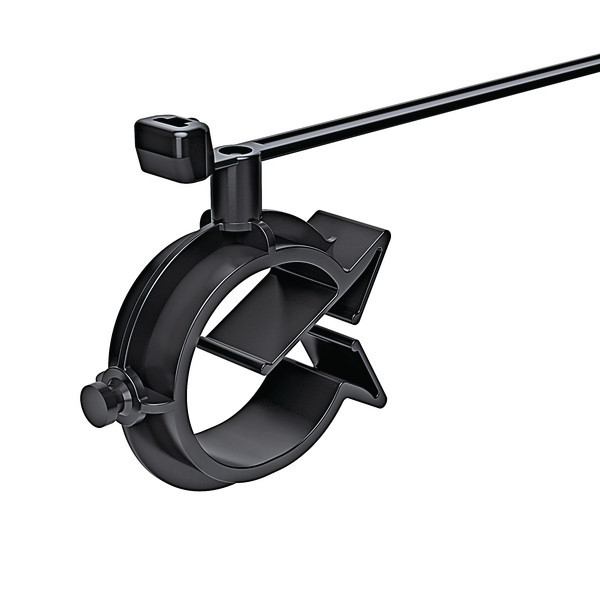

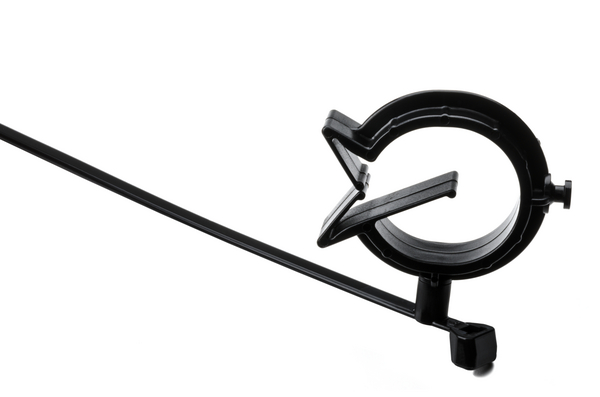

2-Piece Fixing Ties with Pipe Clip, twistable 360° : T50SVCOC19-24.5
2-piece fixing ties with pipe clip, twistable 360° 155x4.7 mm, heat stabilised / high impact modified, heat stabilised, blackArticle number: 156-00136
Certifications & Approvals
Application
These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
More products in this product group
2-Piece Fixing Ties with Pipe Clip, twistable 360° >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Features and Benefits | The simple to use inside serrated fixing tie series provides the opportunity to attach a wire or hose to an existing harness. Offering the facility of a full 360 degrees of rotation, the wire/hose can be oriented in any direction in realtion to the main harness.Ideally suited for any application in which the wire or hose can move in relation to the fixing point. |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK |
| Product Group | 2-Piece Fixing Ties with Pipe Clip, twistable 360° |
| Short Description | 2-piece fixing ties with pipe clip, twistable 360° 155x4.7 mm, heat stabilised / high impact modified, heat stabilised, black |
| Tie Closure | plastic pawl |
| Type | T50SVCOC19-245.MC5B6P |
| Attach to Diameter | 0.75 ″-0.96″ |
| Attach to Ø | 19.0 - 24.5 |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 155mm |
| Min.Tensile Strength | 222N |
| Thickness (T) | 1.35mm |
| Width (W) | 4.7mm |
| ∅ D max. (imperial) | 0.96" |
| ∅ D min. (imperial) | 0.75" |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026263489 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 2.291597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.986388kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 140.856kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 2.248kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121717 |
