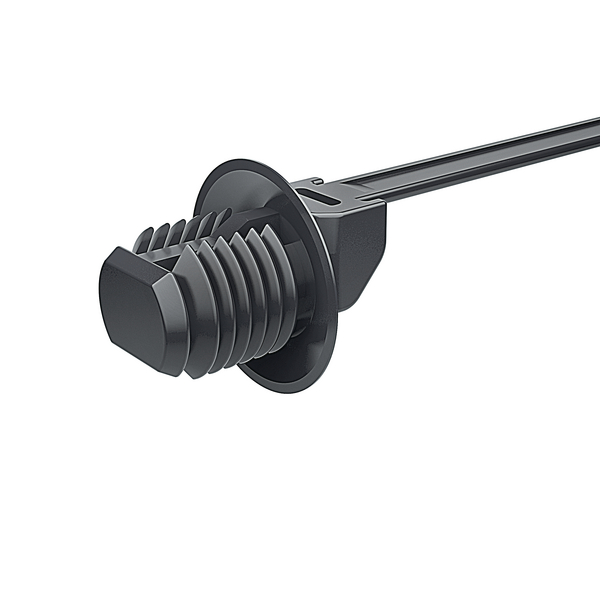

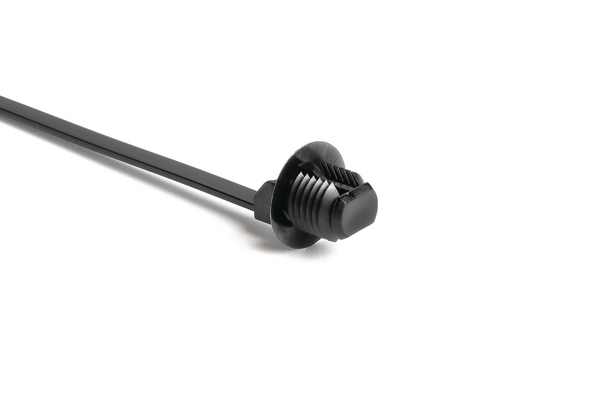

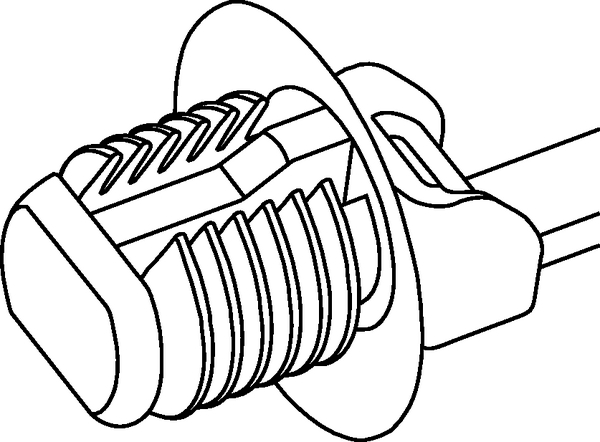

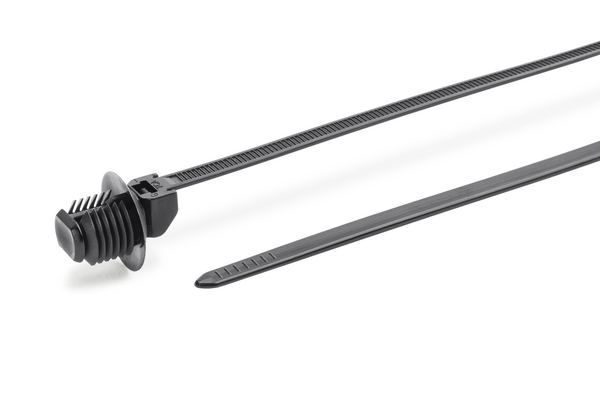

1-Piece Fixing Ties with Fir Tree, with Disc : T60SOSFT12-E

1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes, Article number: 157-00155

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, European EVO9 tool
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Fixing Hole Shape Circular
Identification Plate Position none
Pack Cont. 1000pcs.
Package Quantity per Bag
PART DESCRIPTION T60SOSFT12-E-PA66HS-BK
Product Family 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T60SOSFT12-E_PA66HS_M1
Bundle ∅ max. 30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 20.0mm
for Hole ∅ (FH) 12.0 - 12.5 mm, M14 x 1.5
for Panel Thickness min - max 1 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Length (L) 161.5mm
Min.Tensile Strength 300N
Panel Thickness max. 1.0 – 6.0mm
Width (W) 5.5mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026459042
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 2.557597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.050388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 153.624kg
Packaging 4 - Width (m) 0.8m
Weight 2.514kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
