29/02/2024

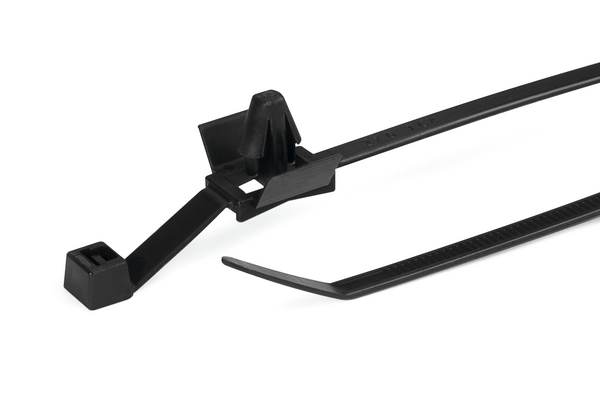

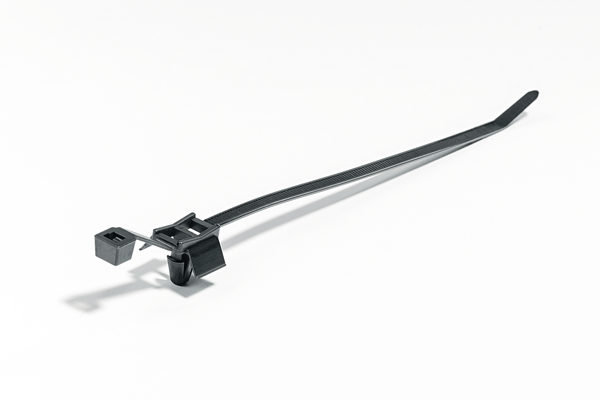

Fixing tie for hole (round), inside serrated, Ø50.0mm, black, 1000pcs.
Art.-No. 126-02600 | T80RSF6.5F-PA66HS-BK Details

  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Bundle runs central across fixing point
  • Cable tie head always situated in defined position

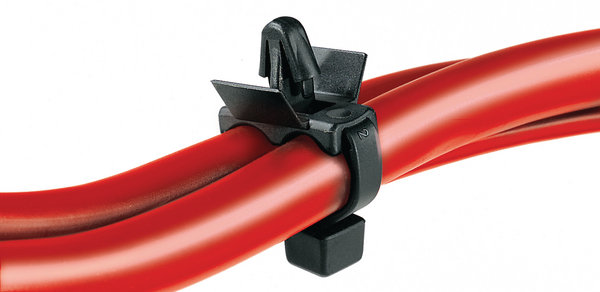

  • For parallel routing of two bundles
Show more

Request your individual offer now

Application This range of fixing ties are ideal for use in many different industries, for example: automotive, aerospace, rail and panel building.
Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Black (BK)
Description Arrowhead Push Ties secure fast and easy, while providing a disc feature to minimize the ingress of dust, dirt, and water. The anchor slides along the tie and adjusts for variations in panel thicknesses which insures a secure fixing at all times.
Fixation Method arrowhead
Identification Plate Position none
Local order number T80RSFT6.5.HB7P
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 1000pcs.
Package Content packed in pcs.
PART DESCRIPTION T80RSF6.5F-PA66HS-BK
Product Family T80RSF6.5F
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings in the strap
Releasable Closure (Yes/No) No
Short Description 1-Piece Fixing Tie with Arrowhead and Wings in the strap PA66HS 209x4.7 black
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 50.0mm
Bundle ∅ 50.0mm
Fixing Hole Shape Circular
for Hole ∅ (FH) 6.3 - 6.5 mm
for Panel Thickness min - max 0.6 - 3 mm
for Panel Thickness min - max 0 - 0 "
Height (H) 1.3mm

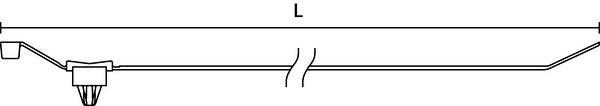

Length (L) 209mm
Length of Fir Tree 7.6mm
Min.Tensile Strength 355N
Panel Thickness max. 0.6 - 3.0mm
Thickness (T) 1.3mm
Weight/Unit 0.00196kg
Width (W) 4.7mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026230825
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 2.0kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.538m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.1213
Packaging 3 - Weight (kg) 9.1kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 32000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 93.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
