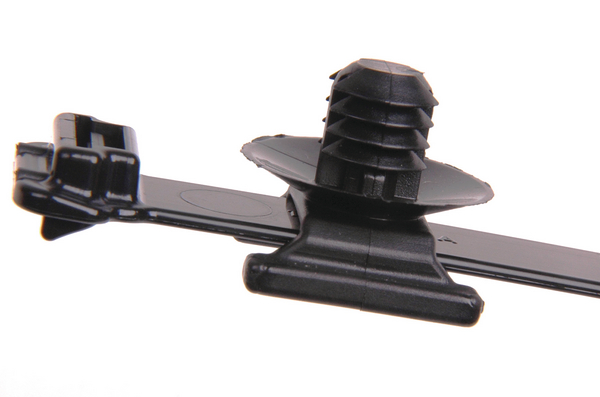

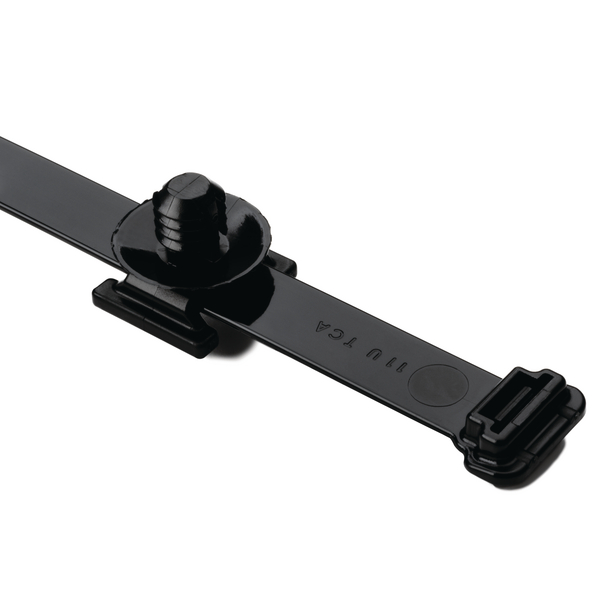

Fixing tie for hole (round), inside serrated, Ø9.5-105.0mm, black, 100pcs.
Art.-No. 156-00070 | WSRFT9A-PA66HIRHSUV-BK Details

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Local order number WSRFT9A-HIRHSW-BK-C1
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION WSRFT9A-PA66HIRHSUV-BK
Product Family Fir tree parts FT9
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ 9.5-105.0mm
Bundle ∅ min. 9.5mm
Disc ∅ 21.6mm
for Hole ∅ (FH) 8.7 - 9.2 mm
for Panel Thickness min - max 1 - 6.5 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 19.10mm
Height (H2) 9.0mm
Length (L) 383.5mm
Min.Tensile Strength 535N
Panel Thickness max. 1.0 - 6.5mm
Width (W) 12.7mm
Width (W2) 13.0mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin US
GTIN-13 / EAN 4031026416168
Packaging 3 - Type Box
Packaging 3 - Weight (kg) 5.56kg
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
