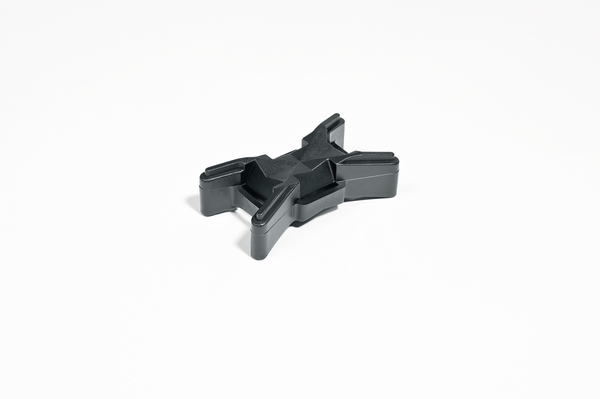

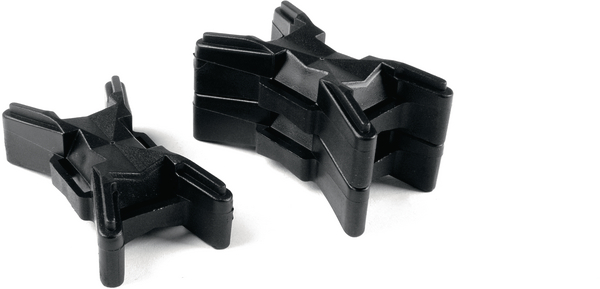

Endless cable ties with separate head and spacer : EL-TY (TELS-SPK2)

Endless Cable Ties black with Separate Head and Spacer, Article number: 111-32000

Features

  • Made of very strong Polyacetal (POM)
  • System consists of endless strap, spacers and heads
  • Head includes stainless steel pawls for a proper fixation
  • Very secure fixing and good resistance to ageing and UV light
  • Suits any bundle diameter and reduces inventory

Certifications & Approvals

Application

These robust cable ties are particularly suitable for use with larger diameter cables, pipes and hoses. Designed originally for securing overhead catenary and cables, they are now used in many industries from the building sector, through to the chemical industry, to the installation of signs for traffic management. Separate spacers allow for a defined distance when bundling in parallel.

EL-TY-Series is suitable for following markets and industries

Colour Black (BK)
Content 50 Spacer
Fixation Method 2 piece
Identification Plate Position none
Pack Cont. 50pcs.
Package Quantity per Bag
PART DESCRIPTION EL-TY (TELS-SPK2)-PP-BK
Product Family EL-TY-Series
Product Group Endless cable ties with separate head and spacer
Releasable Closure (Yes/No) No
Short Description Endless Cable Ties black with Separate Head and Spacer
Tie Closure steel pawl
Type TELSSPK2.PB2P
Variant Extended Length

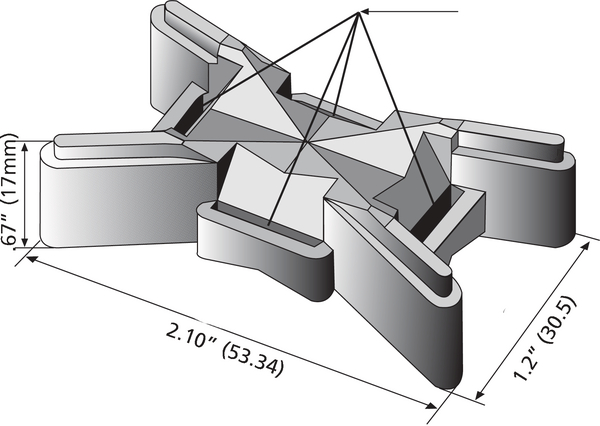

Height (H) 17.0mm
Length (L) 30.5mm
Min.Tensile Strength 1115.0N
Strap Width max. (G) 12.7mm
Width (W) 53.3mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous good No
Material Polypropylene (PP)
Material Head Polyacetal, UV-stabilised with stainless steel pawl (POMUVSS)
Operating Temperature - °C -40 °C to +115 °C
Prop65 Warning No
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026106823
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00084
Packaging 1 - Weight (kg) 0.265kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 750
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 4.585kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 15000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 112.7kg
Packaging 4 - Width (m) 0.8m
Weight 0.265kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
UNSPSC Key 39121703
