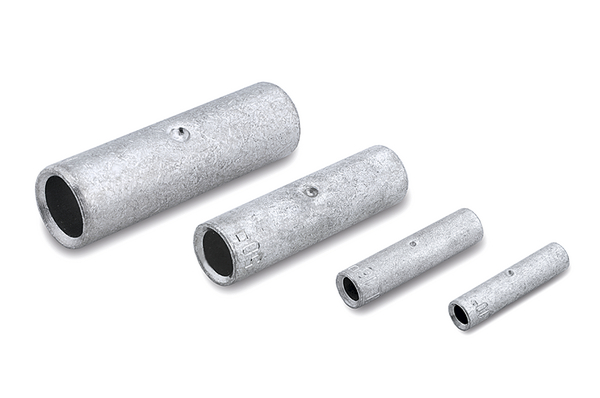

Connectors : Compression connector 2.5

Compression connector 2.5 ST ML, Article number: 435-01451


  • Suitable for copper conductors
  • Optimal material and compress properties because of the annealed material
  • Precise end machining for easy cable insertion
  • Tin-plated connector body
  • With central buttmarks for precise core insertion
  • For RM and SM cable conductors

Certifications & Approvals


Galvanised compression connectors are suitable for stranded and solid copper conductors and provided with central buttmarks for precise conductor insertion.

Colour Zinc Plated Metal (BV)
Pack Cont. 1pc.
Package Quantity per pcs.
PART DESCRIPTION Compression connector 2.5-ST-ML
Product Family Compression connector, tin-plated, with central buttmark for copper conductors
Product Group Connectors
Short Description Compression connector 2.5 ST ML
Conductor Cross Section Main Cable (max.) 1 x 2.5mm²
Inside Ø (ID) 2.3mm
Length (L) 25mm
Outside Ø (OD) 4.2mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Steel (ST)
Voltage Range ETIM up to 15kV
EAN / GTIN 4250596421611
Packaging 1 - Height (m) 0.0025m
Packaging 1 - Length (m) 0.025m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.002kg
Packaging 1 - Width (m) 0.0025m
Weight 0.002kg
ETIM 6.0 EC001063
ETIM 7.0 Key EC001063
