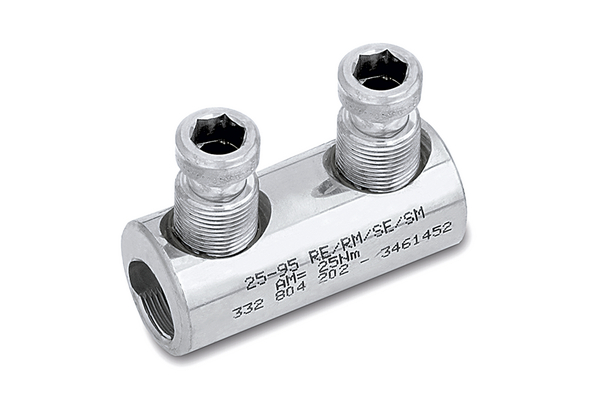

Mechanical connector, 16 - 95mm², Ø16mm, L=55mm, silver
Art.-No. 435-01504 | Mechanical connector 1695-ST-SR |  Details

    This product is not available anymore.
    • For connecting different conductor cross-sections
    • Suitable for aluminium and copper conductors
    • Tin-plated connector body with barrier and shear-off bolts
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Galvanised mechanical connector provided with barrier and shear-off bolts. Suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
    Colour Zinc Plated Metal (BV)
    Material Steel (ST)
    Pack Cont. 1pc.
    Package Content packed in pcs.
    PART DESCRIPTION Mechanical connector 1695-ST-SR
    Product Family Mechanical connector, tin-plated, with barrier and shear-off bolts for AI and CU conductors
    Product Group Connectors
    Short Description Mechanical connector 1695 ST ML
    Conductor Size Range mm² 16 - 95mm²
    Diameter (D) 16mm
    Length (L) 55mm
    Nut Size (NS) 8mm
    Weight/Unit 0.074kg
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Specifications
    Voltage Range up to 15kV
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412756
    Packaging 1 - Height (m) 0.022m
    Packaging 1 - Length (m) 0.056m
    Packaging 1 - Qty 1
    Packaging 1 - Type Pack
    Packaging 1 - Volume (m³) 0.00005m³
    Packaging 1 - Weight (kg) 0.074kg
    Packaging 1 - Width (m) 0.042m
    ETIM 7.0 Key EC001063
    ETIM 8.0 Key EC001063
    ETIM 9.0 Key EC001063
