Cast resin, Polyurethane resin (PUR) green, 1950ml
Art.-No. 435-00258 | Resin-33-B-SF-PUR-GN Details

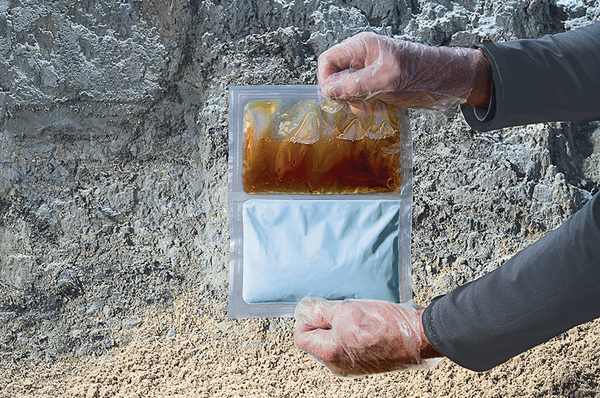

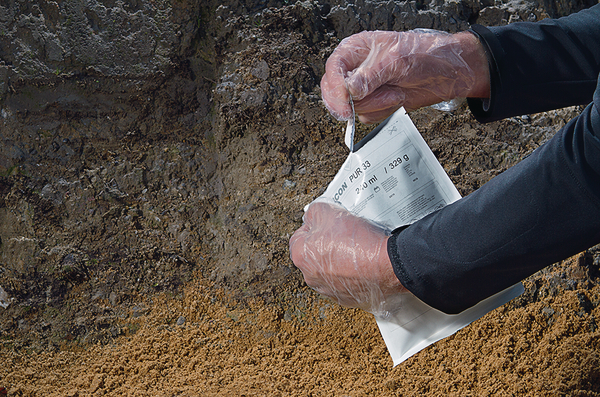

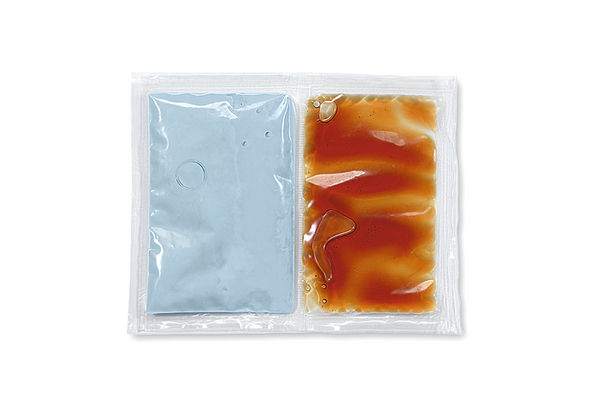

  • In a practical, transparent two-chamber pouch

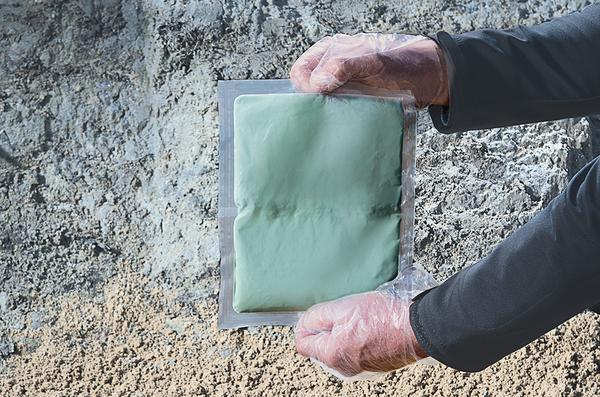

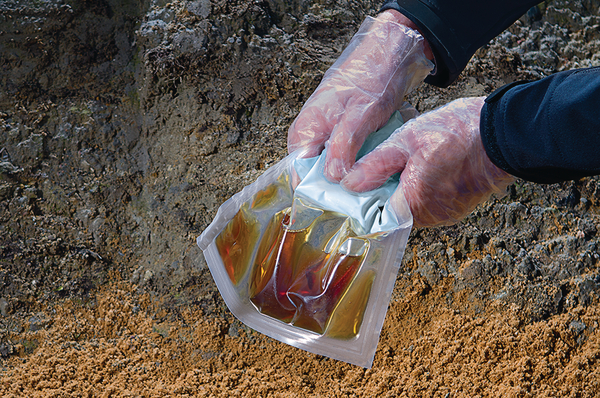

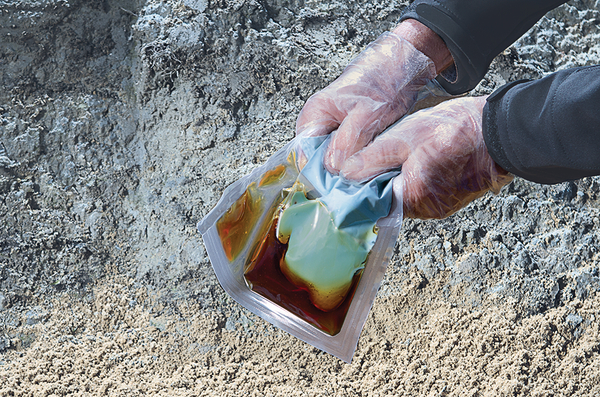

  • Colour changes from blue to green whilst mixing

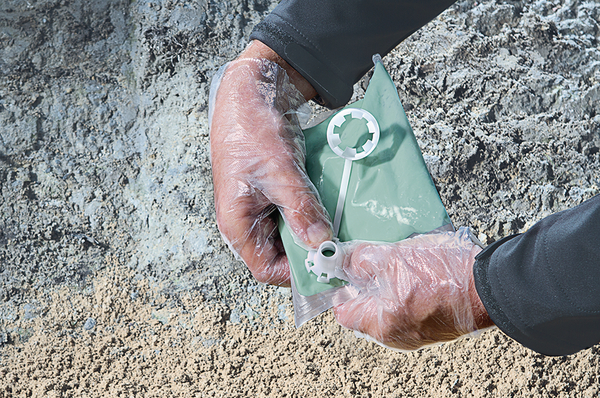

  • Safe-Filling system (SF)
  • Excellent flow properties, low volume shrinkage
  • Cold curing and very hydrophobic, can be submerged directly after casting
  • High hydrolytic stability and good curing at low temperatures
  • UV, ageing and weather resistant
  • Outstanding impact strength and resistance to moisture and atmospheric corrosion
  • Excellent adhesion to polymeric cables and wires made of PVC, XLPE, PE, EPR
  • SVHC-free, contains no hazardous substances, the cured product can be disposed of with house hold waste
  • Halogen free
Show more

Request your individual offer now

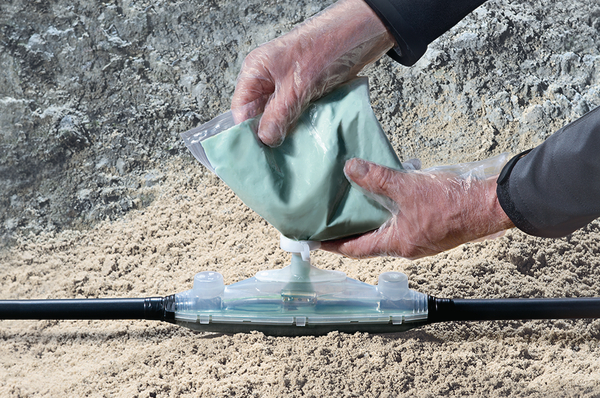

Application The RELICON PUR 33 cast resin has been created for the electrical insulation and mechanical protection of cable connections in low-voltage electrical networks. Also suitable as mechanical and moisture protection on medium-voltage cable connections. Application: For indoor and outdoor use.
Application Tool PTS4, ASS103, RCS0425
Colour Green (GN)
Density 1.37 g/cm³, 20 °C (DIN EN ISO 2811-2)
Material Polyurethane resin (PUR)
Pack Cont. 1950ml
Package Content packed in Bag
PART DESCRIPTION Resin-33-B-SF-PUR-GN
Pot Life 43 min. 5°C, 15 min. 23°C, 8 min. 40°C
Product Family RELICON PUR 33
Product Group Two-component polyurethane cast resin
Short Description Two-component polyurethane cast resin 1950ml with SF- System
Viscosity 4500 mPa*s, 5 °C (EN ISO 2555), 3000 mPa*s, 23 °C (EN ISO 2555)
Resin Quantity 1950 ml/2672 g
Shore Hardness D 65±5
Weight/Unit 2.812kg
Dielectric Strength 38kV/mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Impact Strength 26 kJ/m²
Operating Temperature -25 °C to +120 °C
Shelf Life 48 months
Specifications
Specifications Cenelec HD 631.1 S2:2007-12
Country of Origin DE
Customs Number 39095090
GTIN-13 / EAN 4250596420775
Packaging Bag
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.46m
Packaging 1 - Qty 1
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00483
Packaging 1 - Weight (kg) 2.812kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.185m
Packaging 3 - Length (m) 0.525m
Packaging 3 - Qty 5
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0301
Packaging 3 - Weight (kg) 14.56kg
Packaging 3 - Width (m) 0.31m
Packaging 4 - Height (m) 1.07m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.027
Packaging 4 - Weight (kg) 79.24kg
Packaging 4 - Width (m) 0.8m
Spray content 2672g
Storage Temperature +4 °C to +40 °C
ETIM 7.0 Key EC001168
ETIM 8.0 Key EC001168
ETIM 9.0 Key EC001168
